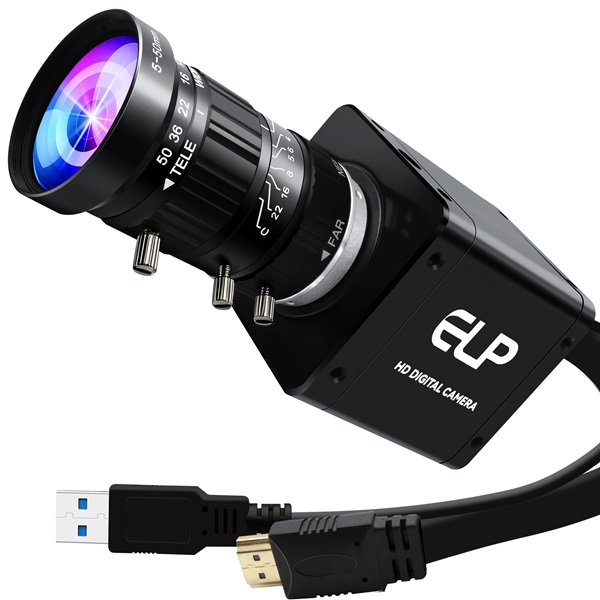

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera with CS 5-50mm Lens Manual 10X Optical Zoom

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera with CS 5-50mm Lens Manual 10X Optical Zoom

  • Model: ELP-USB4KCAM678U3-IB(5-50B)
Add to Cart: Units:  100

Add you Tags
Details
Download
    Key Features:



    * Excellent Imaging: Features a large 1/1.8" Sony IMX678 sensor for superior low-light performance and stunning 4K resolution at up to 60FPS for ultra-smooth video.



    * Dual & Flexible Output: Equipped with both USB 3.0 and HDMI 2.0 interfaces, supporting three display modes (USB, HDMI, or simultaneous output) for maximum adaptability.



    * CS 5-50mm Lens: With CS mount 5-50mm Lens, manul 10X optical zoom; other lens of 10-55mm/ 3.6-10mm/ 8mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm lens options.



    * Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.



    * Complete Package: Comes with a CS lens, necessary cables, and offers a compact metal case 50x50mm, three side with 1/4'' screw hole to support tripod mount, easy to embed in various mechines.





    Specifications:



    Model

      ELP-USB4KCAM678U3-IB(5-50B) (CS 5-50mm Lens, 10X Optical Zoom)

     Options Lens

      ELP-USB4KCAM678U3-IB(10-55B) (CS 10-55mm Lens, 5X Optical Zoom)

      ELP-USB4KCAM678U3-IB(3.6-10) (CS 3.6-10mm Lens, 3X Optical Zoom)

      ELP-USB4KCAM678U3-IBC8 (CS 8mm Manual Focus Lens)

      ELP-USB4KCAM678U3-IBC12 (CS 12mm Manual Focus Lens)

      ELP-USB4KCAM678U3-IBC16 (CS 16mm Manual Focus Lens)

      ELP-USB4KCAM678U3-IBC25 (CS 25mm Manual Focus Lens)

      ELP-USB4KCAM678U3-IBC35 (CS 35mm Manual Focus Lens)

      ELP-USB4KCAM678U3-IBC50 (CS 50mm Manual Focus Lens)

    Sensor

    1/1.8” SONY IMX678

    Pixel Size

    2.0µm x 2.0µm

    Connecting Port Type

    USB 3.0 Interface &HDMI v2.0 Interface

    Display Modes

    I. USB Output

    II. HDMI Output

    III. USB Output +HDMI Output Simultaneous

    HDMI Output

    3840(H)*2160(V) HDMI 60fps

    USB Output

    Max / Default Resolution: 3840(H)*2160(V)

    Video Compression

    MJPEG / YUY2(YUYV) / H.264

    Resolution & Frame Rate

    3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps

    2560x1440 MJPEG 60fps/ H.264 60fps / YUY2 30fps

    1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    Image Processing Time

    About 10 seconds after opening the preview software

    Central Definition

    1000LW/PH(Center)

    S/N Ratio

    41dB

    Min illumination

    0.05Lux

    Shutter Type

    Electronic Rolling Shutter/ Frame Exposure

    AEC/AWB/AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance,

    Backlight Compensation, Exposure

    Lens Parameter

    CS 5-50mm Lens, manual 10X optical zoom;



    Options for 10-55mm/ 3.6-10mm/ 8mm/ 12mm/ 16mm/ 25mm/ 35mm/

    50mm lens

    Power Supply & Interface

    USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

    Operating Voltage

    DC 5V

    Working Current

    700-780mA

    Dimension

    50x50x55mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    -10°C to 70°C

    USB Cable

    1.5m cable with Type-C port

    HDMI Cable

    1.5m cable with HDMI port

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC;

    MAC-OSX10.4.8 or later;

    Android5.x or above
