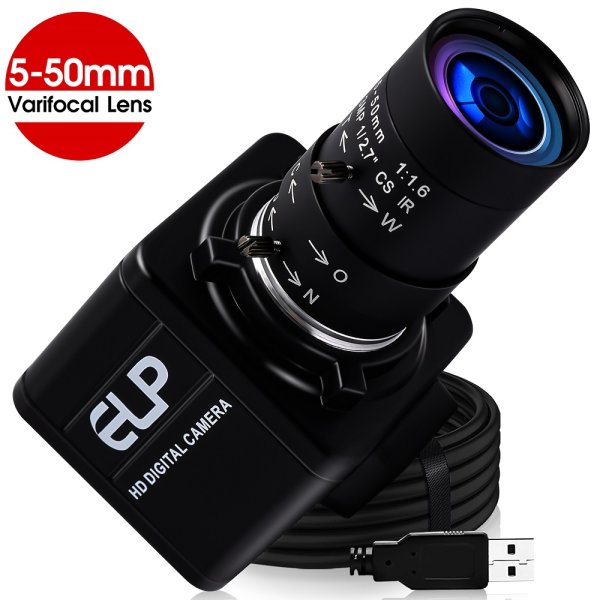

ELP USB3.0 Webcam 1080P MJPEG YUY2 50fps CS 5-50mm 10X Zoom USB Camera

Product 7/8

Details

Download

Features:

* 1080P USB3.0 high speed USB Web Camera

* 1/2.8” Sony IMX291 sensor for high quality image

* High frame rate-1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps

* With CS 5-50mm lens (CS 2.8-12mm, 6-60mm, CS 4mm, 6mm, 8mm...optional)

* MJPEG/YUY2 dual video format optional

* High speed USB 3.0 plug&play port - suitable for any PC with USB 3.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC

Specifications:

Model	ELP-SUSB1080P01-MFV(5-50) (CS 5-50mm varifocal lens)
Optional Models	ELP-SUSB1080P01-MFV(2.8-12) (CS 2.8-12mm varifocal lens)
Sensor	IMX291
Lens Size	1/2.8 inch
Pixel Size	2.9µm X 2.9µm
Max. Resolution	1920(H)X1080(V)
Compression Format	MJPEG / YUV2(YUYV)
Resolution & Frame rate	1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio	40dB
Dynamic Range	65dB
Sensitivity	1900mV/lux-sec@550nm
Min illumination	0. 01lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB3.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AWB	Support
AGC	Support
Lens Parameter	CS 5-50mm varifocal lens, optional 2.8-120mm varifocal lens
Power Supply	USB BUS POWER
Operating Voltage	DC 5V
Working Current	170mA~210mA
Working Temperature	-10~70℃
Storage Temperature	-20~80℃
Camera Size/Weight	505058mm+lens 39.6mm
Cable	Standard 3M (1/2m optional)
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. LinuxwithUVC(abovelinux-2.6.2) MAC-OSX10.4.8 orlater Android4.0 orabovewithUVC
