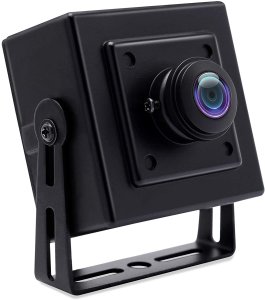

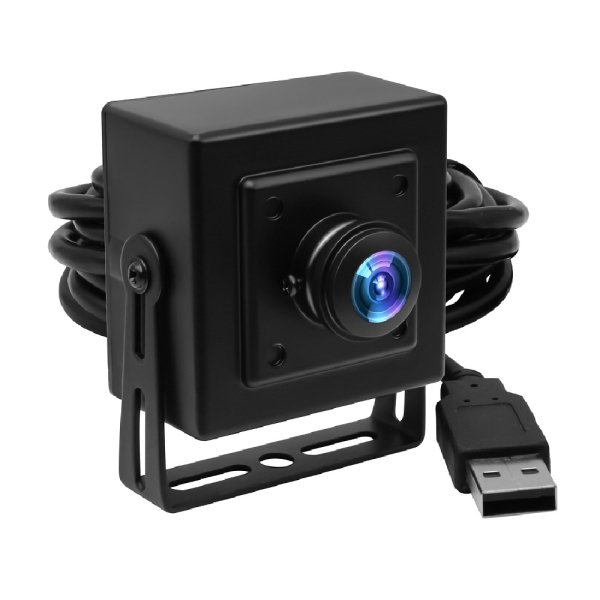

ELP Linux 2MP Full HD 1080P High Speed USB Camera Wecam with 180 Degree Fisheye Lens

ELP Linux 2MP Full HD 1080P High Speed USB Camera Wecam with 180 Degree Fisheye Lens

  • Model: ELP-USBFHD01M-BL180
Add to Cart:
Add you Tags


    *High Speed 1080P HD USB Camera
    *Equiped with wide angle view 180 degree fisheye lens
    *Can drive 30fps@1080P and 60fps@720p 120fps @480P
    *CMOS 1080P sensor for high quality image and low power consumption.
    *High speed USB 2.0 interface for high resolution PC camera interface.
    *high pixel technology for sharp image and accurate color reproduction.
    *High quality lens, true and undistorted color image.
    *Low power consumption – ideal for portable equipment.
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
    *Camera with UVC.

    General Description

    The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
    OmniVision, one of the world leaders in this field of electronics.

    The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.


    Optional models



    1/3" CMOS OV2710

    Lens size

    200W, 2.0megapixel, 1920(H)x1080(V)pixels

    Max. Resolution


    Picture format


    USB Protocal

    USB2.0 HS/FS, USB1.1 FS

    Support free driver

    USB Video Class(UVC)1.1

    Auto exposure AEC


    Auto white blance AEB


    Frame rate

    1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
    1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
    1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
    1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
    800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
    640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
    352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
    320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

    Adjustable parameters

    Brightness/Contrast/Color saturation /Definition/Gamma/WB

    Night vision

    optional, can choose IR board

    view angle

    180 degree


    DC 5V



    work temperature




    Support OS

    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above



    Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

    used for all kinds of machine as below:

    machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
    vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
    enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
    automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
    shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
    surveillance, endoscope, Medical auxiliary equipment, etc.
