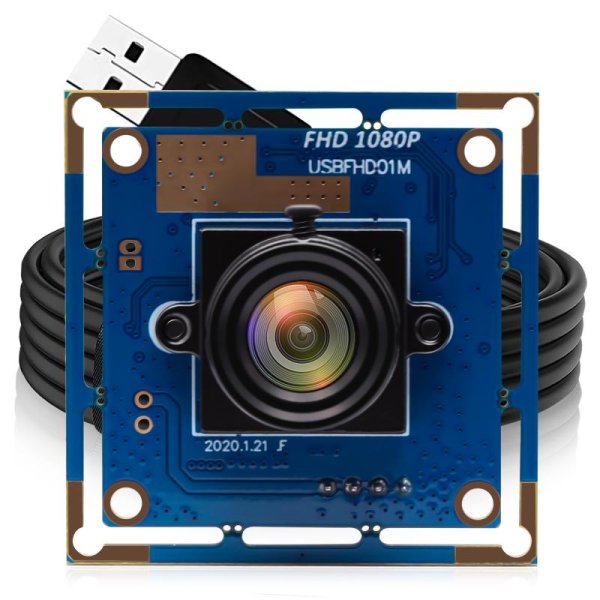

ELP Full HD 1080P USB Camera Module CMOS OV2710 Sensor 2MP with No Distortion Lens 86 Degree Lens

Model: ELP-USBFHD01M-L100

Add you Tags

Product 6/15

Return to the Product List

Details

Download

Features:

* High Quality Sensor: 1/2.7" CMOS OV2710 Sensor

* Full HD 1080P: Max Resolution 1920x1080

* High Speed, High Frame Rate : 1920x1080 MJPEG 30FPS, 1280x720 MJPEG 60FPS, 640x480 MJPEG 100FPS

* Wide Angle No/Macro Distortion Lens: HFOV about 86 degree, VFOV about 55 degree

* Compact Size: 38x38mm (Compatible 32x32mm)

* Default with 1m USB Cable: other length cable optional (2m/3m/5m/0.3m/0.5m...optional)

* UVC Compliance: free driver, Plug & Play

*Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera...

Specifications:

Model	ELP-USBFHD01M-L100
Sensor	1/2.7 inches OV2710
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 6fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps
Mini Illumination	0.05 Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port type	USB2.0 High Speed (Support USB2.0 HS/FS, USB2.0 OTG)
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class (UVC)
AEC, AWB, AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	M12 No Distortion lens, HFOV about 86 degree, VFOV about 55 degree (Many other lens optional)
Night Vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working current	120mA~220mA
Working Temperature	-10～60℃
Storage Temperature	-20～75℃
Board Size	38x38mm (Remove the edge, get 32x32mm)
Cable	Standard 1m (optional 0.3m/0.5m/2m/3m/5m...)
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
Optional Models	No/Macro Distortion Lens: ELP-USBFHD01M-H100 (HFOV 100 degree, VFOV 67 degree) ELP-USBFHD01M-H110 (HFOV 113 degree, VFOV 76 degree) ELP-USBFHD01M-H120 (HFOV 125 degree, VFOV 87 degree) ELP-USBFHD01M-L100 (HFOV 86 degree, VFOV 55 degree) ELP-USBFHD01M-L297 (HFOV 92 degree, VFOV 60 degree) ELP-USBFHD01M-V100 (HFOV 85 degree, VFOV 53 degree) ELP-USBFHD01M-LC1100 (HFOV 68 degree, VFOV 41 degree) Wide Angle Fisheye Lens: ELP-USBFHD01M-L170 (HFOV 155, VFOV 83) ELP-USBFHD01M-L180 (HFOV 195, VFOV 123) Normal M12 Lens: ELP-USBFHD01M-L12 (HFOV 25, VFOV 14) ELP-USBFHD01M-L80 (HFOV 42, VFOV 23) ELP-USBFHD01M-L60 (HFOV 53, VFOV 30) ELP-USBFHD01M-L36 (HFOV 90, VFOV 46) ELP-USBFHD01M-L28 (HFOV 113, VFOV 61) ELP-USBFHD01M-L21 (HFOV 117, VFOV 60)
