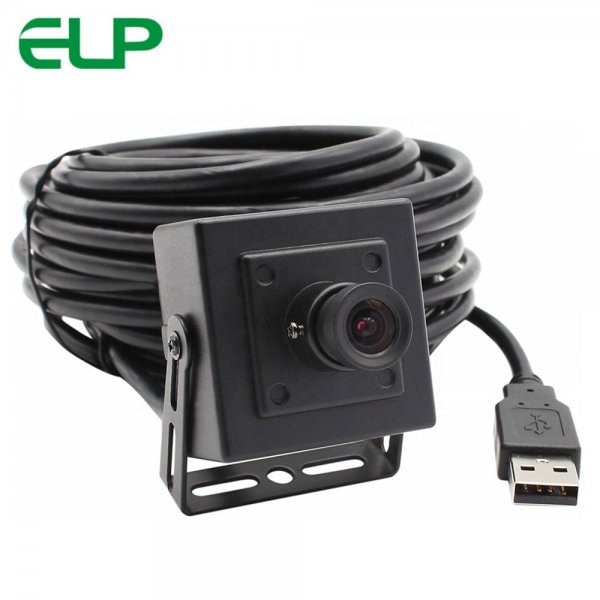

ELP AR0130 1.3MP Low Illumination mini ATM usb camera with 3.6mm lens ELP-USB130W01MT-BL36

Model: ELP-USB130W01MT-BL36

Add you Tags

Product 18/22

Return to the Product List

Details

Download

Features:

* 1.3MP low illumination USB Camera with mini metal housing

* 1/3” Aptina AR0130 Color CMOS sensor for high quality image

* 0.01 Lux Low illumination - ideal for any lighting condition

* With HD 3.6mm M12 lens

* MJPEG/YUY2 dual video format optional

* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.

Specifications:

Model	ELP-USB130W01MT-BL36
Resolution & FPS	1280X960 MJPEG@ 15fps YUY2@9fps 1280X720 MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps 160X120 MJPEG@ 30fps YUY2@ 30fps
Sensor	Aptina AR0130	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	3.75um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	1280(H)X960(V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens	3.6mm lens (HFOV 75 degree, VFOV:56 degree) Many other lens optional	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 3m / Optional 0.3m 1m,2m,5m...	work temperature	DEGREES(-20~70)
Size	41x41mm	Certifications	FCC and CE
Mini illumination	0.01lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	100mA~160mA
OTG protocol	USB2.0 OTG	Special function	Wide angle
Night vision	Standard without night vision (Can connect IR LED board to get night vision function)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
Optional Models	ELP-USB130W01MT-BL21 (2.1mm) ELP-USB130W01MT-BL2 8(2.8mm) ELP-USB130W01MT-BL60 (6mm) ELP-USB130W01MT-BL80 (8mm) ELP-USB130W01MT-BL12 (12mm) ELP-USB130W01MT-BL170 ELP-USB130W01MT-BL180 (Fish-eye lens) ELP-USB130W01MT-BL100 (F1 no distortion lens) Specifications are same, lens different .
