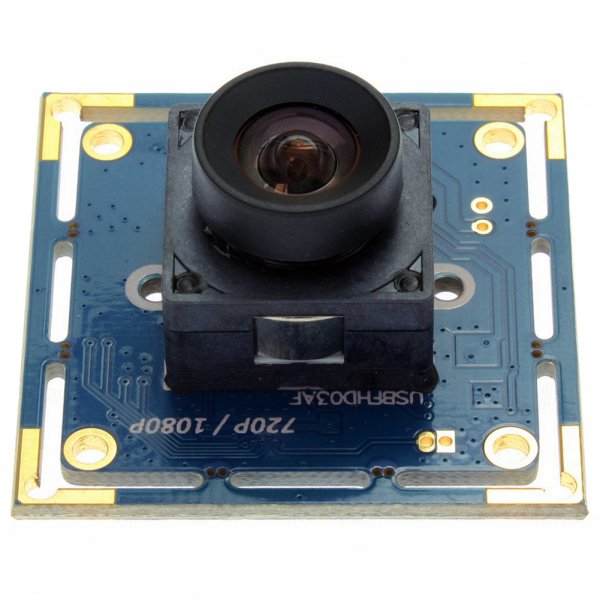

ELP 1080P Full HD usb camera module autofocus with 100 degree no distortion lens for medical device

ELP 1080P Full HD usb camera module autofocus with 100 degree no distortion lens for medical device

  • Model: ELP-USBFHD03AF-A100
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 2MP full hd Auto focus USB Camera module
    * 1/2.7” omnivision OV2710 Color CMOS sensor for high quality image
    * High frame rate - 1280*720 @60fps, 1920*1080 30fps
    * With HD 100 degree no distortion M12 lens
    * Support white LED borad for light compensation
    * MJPEG/YUY2 dual video format optional
    * Mini size 38x38/32x32mm for embedded application
    * High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

    Specification:


    Model

    ELP-USBFHD03AF-A100

    Sensor

    OV2710

    Lens Size

    1/2.7 inches

    Pixel Size

    3.0um X 3.0um

    image area

    5856 µm x 3276 µm

    Max. Resolution

    FULL HD 1920(H)X1080(V)

    Compression format

    MJPEG / YUV2(YUYV)

    Resolution & frame

    320X240 QVGA MJPEG @30fps/ 352X288 CIF MJPEG @30fps
    640X480 VGA MJPEG@30fps/ 800X600 SVGA MJPEG@30fps
    1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@30fps
    1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps

    Special function

    Lens correction/ Defective pixel correction/ Black sun cancellation

    Mini illumination

    0.05lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Sensitivity

    3.7V/lux-sec@550nm

    Connecting Port type

    USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG)

    USB Protocol

    USB2.0 HS/FS

    Connecting Port type

    USB2.0 High Speed

    OTG Protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance,
    Backlight Contrast, Exposure

    Lens Parameter

    FOV(D)100 Degree Lens with AUTOFOCUS MOTOR

    Focus

    Auto

    Night vision

    Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

    LED board power connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Operating Voltage

    DC5V

    Working current

    120mA~220mA

    Working temperature

    0~60℃

    Storage temperature

     -20~75℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard 1M (optional 2M,3M,5M)

    Operating system request

    WinXP/Vista/Win7/Win8/ Win9/ Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above with UVC
