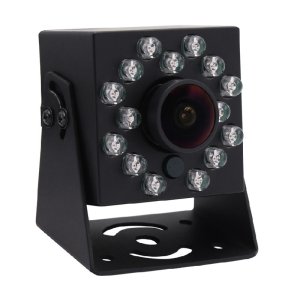

ELP 2MP Full HD 1080P USB Camera IR Infrared Night Vision Free Driver with Fisheye Lens

Model: ELP-USBFHD05MT-UL170IR

Add you Tags

Product 6/7

Return to the Product List

Details

Download

Features:

-2MP Full HD 1080P USB webcam Camera with 1/2.7" OV2710 Sensor

-Day and Night, infrared monochrome night vision camera, with 15PCS IR LEDs

-High speed, high FPS usb web camera:

1920x1080 MJPEG 30fps, 1280x720 MJPEG 60fps, 640x480 MJPEG 100fps

-Mini micro usb camera with metal case

-Webcam usb with 3m standard cable, 1m/2m/5m/0.3m/0.5m...other length optional

-UVC free driver, plug and play

-Support different operating systems, Windows, Linux, Android, Mac OS

-Support multi software: Amcap,iSpy,OpenCV,VLC,V4L2,CameraFi,Yawcam,Blue Iris,Photo Booth...

Specification:

Model	ELP-USBFHD05MT-UL170IR (Fisheye lens, HFOV 156 degree)
Optional models	ELP-USBFHD05MT-UL36IR (3.6mm lens, HFOV 90 degree) ELP-USBFHD05MT-UL28IR (2.8mm lens, HFOV 110 degree) ELP-USBFHD05MT-UL60IR (6mm lens, HFOV 53 degree) ELP-USBFHD05MT-UL80IR (8mm lens, HFOV 42 degree) ELP-USBFHD05MT-UL12IR (12mm lens, HFOV 25 degree) ELP-USBFHD05MT-UL170IR (Fisheye lens, HFOV 156 degree) ELP-USBFHD05MT-UL156IR (Fisheye lens, HFOV 190 degree)
Sensor	1/2.7" CMOS OV2710
Lens size	200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution	1920X1080
Picture format	MJPEG
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 6fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	With IR LED, with monochrome night vision
Lens	M12 monut fisheye lens, HFOV above 156 degree/ VFOV about 85 degree; Many other lens options of 3.6mm/2.8mm/6mm/8mm/12mm, no distortion lens, fisheye 190 degree lens
Voltage	DC 5V
Current	180mA
Working temperature	-10~70℃
Case size	41x41mm
Support OS	WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11 etc Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above
