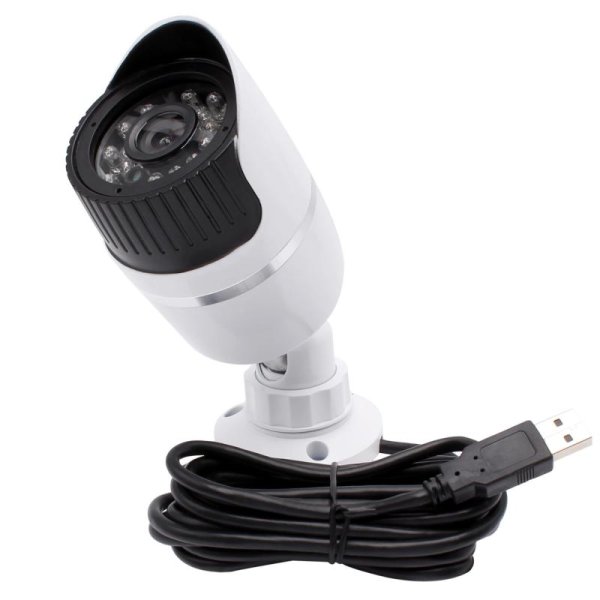

2MP IR Night Vision Waterproof Bullet USB Camera with M12 Fixed Focus 3.6mm Lens

2MP IR Night Vision Waterproof Bullet USB Camera with M12 Fixed Focus 3.6mm Lens

  • Model: ELP-USBFHD05MT-BH36
Add to Cart: Units:  100

Add you Tags
Details
Download

    -2MP Full HD Waterproof USB Bullet Camera
    -Wide angle USB webcam with M12 fixed focus 3.6mm lens, HFOV about 96 degree.
    -High speed full HD camera, resolution 1920x1080
    1920x1080 Mjpeg 30fps, 1280x720 Mjpeg 60fps, 640X480 Mjpeg 100fps
    -UVC free driver, Plug and play.
    -Standard with 3m cable, (1/2/3/0.3/0.5m...optional)
    -Support different systems and different softwares. Windows, Linux, Android, Mac OS
    Support different softwares: Amcap,iSpy,OpenCV,VLC,V4L2,CameraFi,Yawcam,Blue Iris,Photo Booth..

    Specifications:



    Model
    ELP-USBFHD05MT-BH36
    Sensor
    1/2.7 inches OV2710
    Max. Resolution
    FULL HD 1920(H)X1080(V)
    Compression Format
    MJPEG / YUV2（YUYV）
    Resolution & Frame Rate
    320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps
    640X480 VGA MJPEG@100/120fps/ 800X600 SVGA MJPEG@60fps
    1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps
    1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
    Special Function
    Lens correction/ Defective pixel correction/ Black sun cancellation
    Mini Illumination
    0.05lux
    Shutter Type
    Electronic rolling shutter / Frame exposure
    Sensitivity
    3.7V/lux-sec@550nm
    Connecting Port type
    USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）
    USB Protocol
    USB2.0 HS/FS USB1.1/USB1.0
    OTG Protocol
    USB2.0 OTG
    Free Drive Protocol
    USB Video Class（UVC）
    AEC, AEB, AGC
    Support
    Adjustable Parameters
    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
    Lens Parameter
    M12 mount fixed focus 3.6mm lens
    HFOV : about 96 degrees, VFOV: about 52 degrees
    Night Vision
    Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
    LED board power connector
    Support 2P-2.0mm socket
    Power Supply
    USB BUS POWER 4P-2.0mm socket
    Power Supply
    DC5V
    Operating Voltage
    120mA~220mA
    Working Current
    0～60℃
    Working Temperature
    -20～75℃
    Board Size /Weight
    66x66x183mm
    Cable
    Standard 3m (optional 1m/2m/5m...)
    Operating System Request
    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC（above linux-2.6.26）
    MAC-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above with UVC
