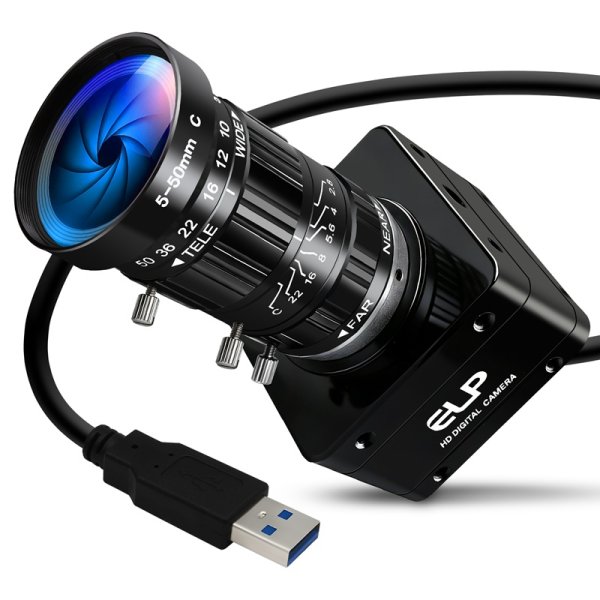

ELP 4K 60fps USB3.0 Camera Large Sensor IMX678 Webcam with CS 5-50mm Lens Manual 10X Optical Zoom

Model: ELP-U3CAM4K60-IB(5-50B)

Add you Tags

Product 4/16

Return to the Product List

Details

Download

Key Features:

* Excellent Imaging: Features a large 1/1.8" Sony IMX678 sensor and varifocal CS 5-50mm lens, manual 10X optical zoom

* High Resolution 4K @60FPS: Delivers stunning 3840x2160 with high frame rate 60fps @MJPEG and 23fps @YUY2, ensuring incredibly smooth and detailed video.

* USB3.0 Output & Type C Interface: Equipped with Type C interfaces and USB3.0 output, improving the high speed to make sure you will not have issues with dropped frames .

* Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi...

Specifications:

Model	ELP-U3CAM4K60-IB(5-50B) (CS 5-50mm lens, 10X optical zoom)
Options Lens	CS Varifocal Lens: ELP-U3CAM4K60-IB(3.6-10) (CS 3.6-10mm lens, 3X optical zoom) ELP-U3CAM4K60-IB(10-55B) (CS 10-55mm lens, 5X optical zoom) ELP-U3CAM4K60-IB(5-50B) (CS 5-50mm lens, 10X optical zoom) CS Manual Focus Lens: ELP-U3CAM4K60-IBC8 (CS 8mm lens) ELP-U3CAM4K60-IBC12 (CS 12mm lens) ELP-U3CAM4K60-IBC16 (CS 16mm lens) ELP-U3CAM4K60-IBC25 (CS 25mm lens) ELP-U3CAM4K60-IBC35 (CS 35mm lens) ELP-U3CAM4K60-IBC50 (CS 50mm lens)
Sensor	1/ 1.8” SONY IMX678
Max/ Default Resolution	3840(H)*2160(V)
Pixel Size	2.0 µm x 2.0 µm
Video Compression	MJPEG / YUY2(YUYV)
Resolution & Frame Rate (USB 3.0 Interface & Speed)	Under USB 3.0 Interface & Speed: 3840x2160 MJPEG 60fps/ YUY2 23fps 2880x2160 MJPEG 60fps/ YUY2 30fps 2592x1944 MJPEG 60fps/ YUY2 30fps 2560x1440 MJPEG 60fps/ YUY2 30fps 2048x1536 MJPEG 60fps/ YUY2 60fps 1600x1200 MJPEG 60fps/ YUY2 60fps 1920x1080 MJPEG 60fps/ YUY2 60fps 1280x960 MJPEG 60fps/ YUY2 60fps 1280x720 MJPEG 60fps/ YUY2 60fps 640x480 MJPEG 60fps/ YUY2 60fps
Resolution & Frame Rate (USB 2.0 Speed)	Under USB 2.0 Speed: 3840x2160 MJPEG 30fps/ YUY2 1fps 2880x2160 MJPEG 30fps/ YUY2 1fps 2592x1944 MJPEG 30fps/ YUY2 1fps 2560x1440 MJPEG 30fps/ YUY2 1fps 2048x1536 MJPEG 30fps/ YUY2 1fps 1600x1200 MJPEG 60fps/ YUY2 1fps 1920x1080 MJPEG 60fps/ YUY2 1fps 1280x960 MJPEG 60fps/ YUY2 1fps 1280x720 MJPEG 60fps/ YUY2 10fps 640x480 MJPEG 60fps/ YUY2 30fps
Central Definition	1000LW/PH(Center)
S/N Ratio	41dB
Min illumination	0. 1Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	CS Mount 5-50mm Varifocal Lens, manual 10X Optical Zoom; Optional Lenses: CS Varifocal lens: 3.6-10mm lens/ 10-55mm lens CS Manual Focus lens: 8mm/12mm/16mm/25mm/35mm/50mm lens
Power Supply & Interface	USB Type-C Power Supply, Type-C
Operating Voltage	DC 5V
Working Current	230-260mA
Dimension	50.2x50.2x33.5mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1.2m cable with USB3.0 Type-C port
Operating System Request	Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.
