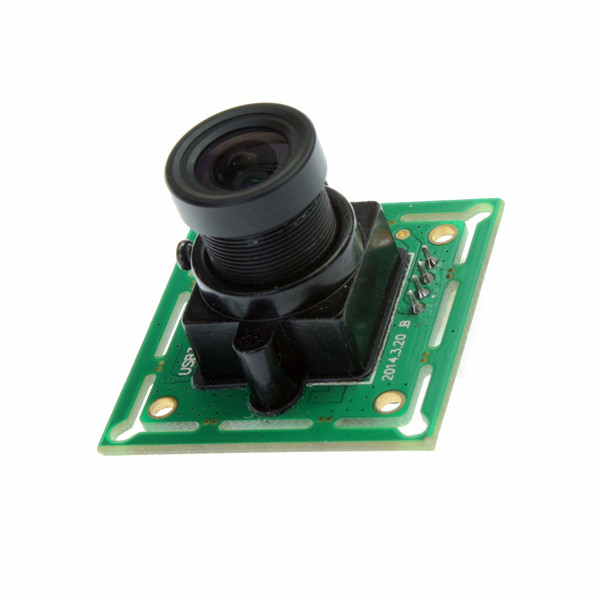

Model

ELP-USB30W02M-L21

Sensor

OV7725

Lens Size

1/4 inch

Pixel Size

6.0um X 6.0um

image area

3984 µm x 2952 µm

Max. Resolution

640(H)X480(V)

Compression format

MJPEG  /  YUV2（YUYV）

Resolution & frame

640X480  MJPEG@ 60fps YUY2@ 30fps/ 480X480  MJPEG@ 30fps YUY2@ 30fps

450X450  MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps

320X240  MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps

S/N Ratio

50dB

Dynamic Range

60dB

Sensitivity

3.8V/lux-sec@550nm

Mini illumination

0. 2lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure

Lens Parameter

2.1mm, optional 2.5/2.8/3.6/6mm/ FOV(D)170 Degree

Night vision

Need to equipped IR Sensor Lens and IR LED Board

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

100mA~160mA

Working current

 -10～70℃

Working temperature

-20～85℃

Board size /Weight

32X32mm（Compatible 26X26mm）/ about 30g

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

WinXP/Vista/Win7/Win8

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
