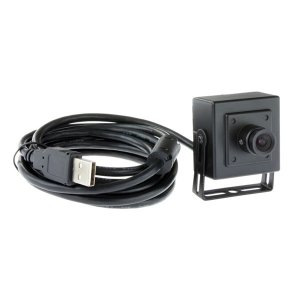

ELP VGA USB Camera 0.3MP USB2.0 Webcam OV7725 Color Sensor YUY2 and MJPEG with 3.6MM Lens

Model: ELP-USB30W02M-BL36

Add you Tags

Product 5/12

Return to the Product List

Details

Download

Feature:

*0.3MP USB Camera

*1/4" CMOS OV7725 sensor
* High frame rate - VGA 640X480 MJPEG @60fps/ YUY2 @30fps
* With M12 3.6mm lens, HFOV about 56 degree, 2.1mm/2.8mm/6mm/8mm/12mm/16mm/25mm lens for option

* MJPEG/YUY2 dual video format optional
* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Android, Mac, Linux, Raspberry Pi with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, Simple surveillance, Robot, ATM, Kiosk etc.

Main Specifications

Model	ELP-USB30W02M-BL36 (3.6mm lens, HFOV 56 degree)
Lens Options	ELP-USB30W02M-BL21 (2.1mm lens, HFOV 72 degree) ELP-USB30W02M-BL28 (2.8mm lens, HFOV 75 degree) ELP-USB30W02M-BL60 (6mm lens, HFOV 37 degree) ELP-USB30W02M-BL80 (8mm lens, HFOV 28 degree) ELP-USB30W02M-BL12 (12mm lens, HFOV 17 degree) ELP-USB30W02M-BL16 (16mm lens, HFOV 14 degree) ELP-USB30W02M-BL25 (25mm lens, HFOV 8 degree)
Sensor	OV7725
Lens Size	1/4 inch
Pixel Size	6.0um X 6.0um
image area	3984 µm x 2952 µm
Max. Resolution	640(H)X480(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	640X480 MJPEG@ 60fps YUY2@ 30fps 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps 240X240 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio	50dB
Dynamic Range	60dB
Sensitivity	3.8V/lux-sec@550nm
Mini illumination	0. 2lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard M12 mount 3.6mm, HFOV about 56 degree; optional 2.1mm/2.8mm/6mm/8mm/12mm/16mm/25mm lens, no distortion lens, fisheye lens FOV(D)170 Degree
Night vision	Need to equipped IR Sensor Lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	100mA~160mA
Working current	-10～70℃
Working temperature	-20～85℃
Size /Weight	41x41x40mm/ 180g
Cable	Standard 3M / optional 1M,2M,5M
Operating system request	WinXP/Vista/Win7/Win8 or above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
