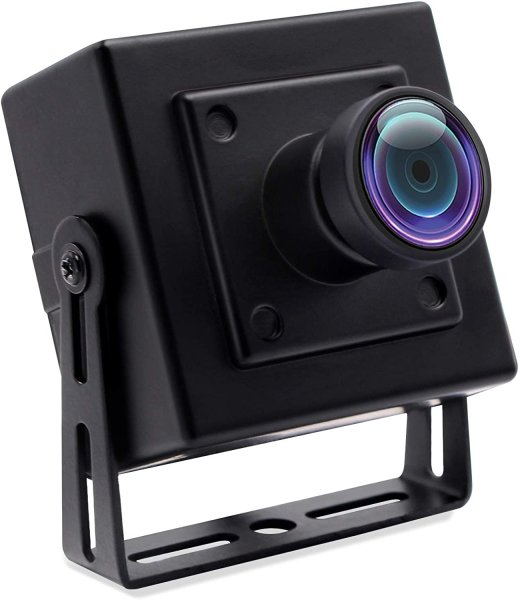

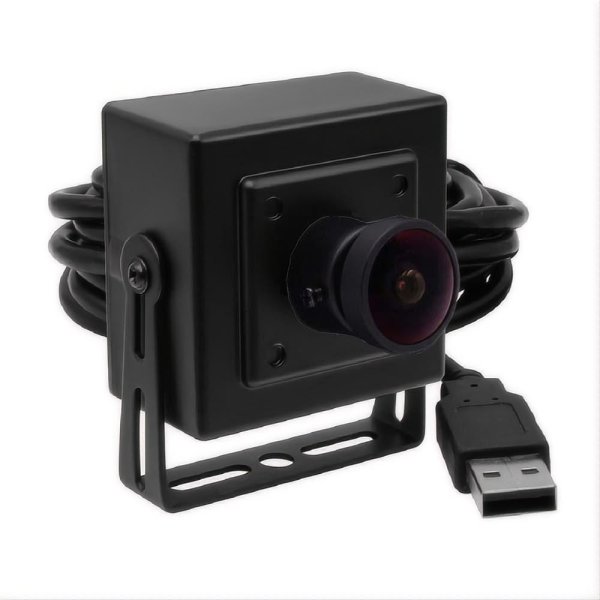

ELP Android Linux High Speed 120fps 1080P Full HD MINI USB Camera for Smart Virtual Golf Games

ELP Android Linux High Speed 120fps 1080P Full HD MINI USB Camera for Smart Virtual Golf Games

  • Model: ELP-USBFHD01M-BL170
Add to Cart:
Add you Tags


    *1080P HD high resolution USB Camera
    *All kinds of resolution optional
    *CMOS 1080P sensor for high quality image and low power consumption.
    *High speed USB 2.0 interface for high resolution PC camera interface.
    *high pixel technology for sharp image and accurate color reproduction.
    *Super small outline and thin profile for embedded applications.
    *High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
    *High quality lens, true and undistorted color image.
    *Low power consumption – ideal for portable equipment.
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
    *Camera with UVC.

    General Description

    The HD 1080P USB CMOS board camera (model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
    OmniVision, one of the world leaders in this field of electronics.

    The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.


    Optional models

    ELP-USBFHD01M-BL170 (170 degree Fisheye lens)

    ELP-USBFHD01M-BL36 (3.6mm lens)

    ELP-USBFHD01M-BL21 (2.1mm lens)

    ELP-USBFHD01M-L28 (2.8mm lens)

    ELP-USBFHD01M-BL60 (6mm lens)

    ELP-USBFHD01M-BL80 (8mm lens)

    ELP-USBFHD01M-BL12 (12mm lens)

    ELP-USBFHD01M-BL100 (100 degree No distortion lens)

    ELP-USBFHD01M-BH110 ( 110 degree Low distortion Lens)

    ELP-USBFHD01M-BL180 (180 degree Fisheye lens)


    1/3" CMOS OV2710

    Lens size

    200W, 2.0megapixel, 1920(H)x1080(V)pixels

    Max. Resolution


    Picture format


    USB Protocal

    USB2.0 HS/FS, USB1.1 FS

    Support free driver

    USB Video Class(UVC)1.1

    Auto exposure AEC


    Auto white blance AEB


    Frame rate

    1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
    1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
    1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
    1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
    800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
    640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
    352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
    320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

    Adjustable parameters

    Brightness/Contrast/Color saturation /Definition/Gamma/WB

    Night vision

    optional, can choose IR board

    view angle

    HFOV 156 degree

    VFOV 85 degree


    DC 5V



    work temperature



    41*41mm, 36*36mm Size Optional

    Support OS

    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above
