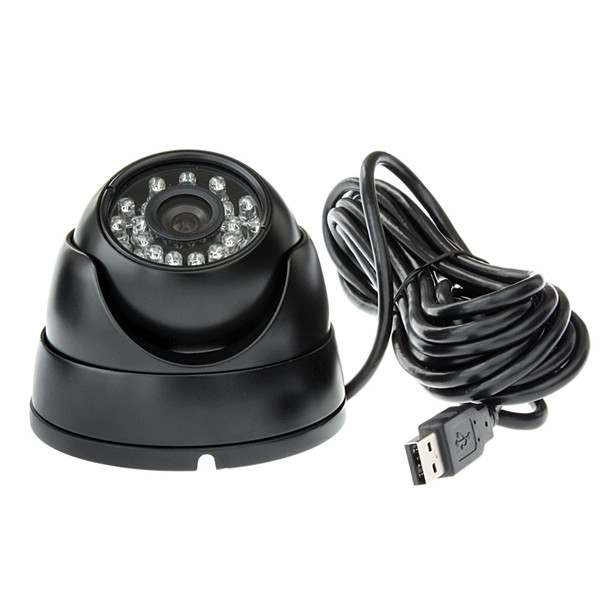

960H Dome Usb Camera Module AR0130 Color Sensor MJPEG with IR Cut IR LED 3.6MM Lens

960H Dome Usb Camera Module AR0130 Color Sensor MJPEG with IR Cut IR LED 3.6MM Lens

  • Model: ELP-USB130W01MT-DL36
Add to Cart:

Add you Tags
Details
Download

    960H Dome Usb Camera Module AR0130 Color Sensor MJPEG with IR Cut IR LED 3.6MM Lens

    Main Specifications

    Model

    ELP-USB130W01MT-DL36

    Sensor

    Aptina AR0130

    Lens Size

    1/3 inch

    Pixel Size

    3.75um

    Max. Resolution

    1280(H)X960(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps

    800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

    320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

    S/N Ratio

    44dB

    Dynamic Range

    83.5dB

    Sensitivity

    5.5V/lux-sec@550nm

    Mini illumination

    0. 01lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    OTG protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness,  Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard 3.6mm, optional 6/8mm

    LED

    24PCS LED

    IR CUT Connector

    Support  2P-1.25mm socket

    LED board test connector

    Support  2P-1.25mm socket

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC5V

    Operating Voltage

    100mA~160mA

    Working current

     0~70℃

    Working temperature

    -20~75℃

    size /Weight



    Cable

    Standard 3M / optional 2M,5M

    Operating system request

    WinXP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC
