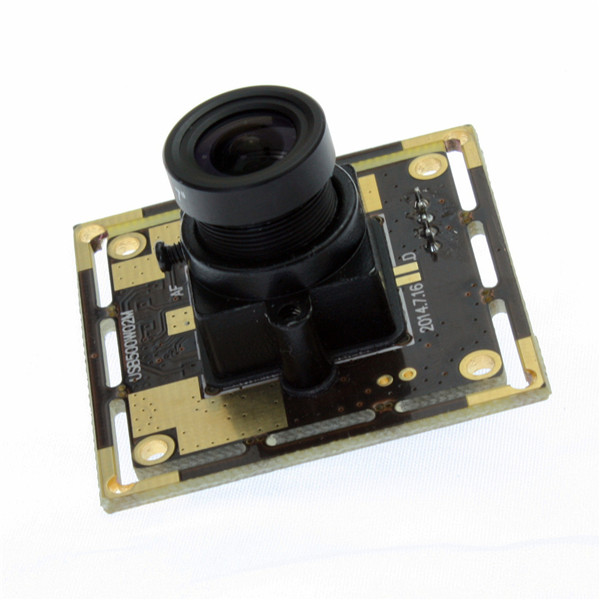

5MP HD Wide Anagle Fisheye Lens USB Camera with YUY and MJPEF Output

5MP HD Wide Anagle Fisheye Lens USB Camera with YUY and MJPEF Output

  • Model: ELP-USB500W02M-L170
Add to Cart:

Add you Tags
Details
Download

    Feature:
    *Ultra 5MP HD Wide Angle View USB Camera Board
    *Equiped with 170 degree wide angle fisheye lens
    *UP to 2592 (H) x 1944 (V) resolution
    *5Megapixel CMOS sensor for high quality image.
    *High speed USB 2.0 interface for high resolution PC camera interface.
    *high pixel technology for sharp image and accurate color reproduction.
    *low light performance – ideal for any lighting condition.
    *Super small outline and thin profile for embedded applications.
    *High frame rate–30 fps in 1280X720 resolution.
    *High quality lens, true and undistorted color image.
    *Low power consumption – ideal for portable equipment.
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
    *Camera with UVC.

    General Description

    The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials) is ideal for many applications like security
    systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
    OmniVision OV5640, one of the world leaders in this field of electronics.

    The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.

    Specification:

    Optional models

    ELP-USB500W02M-L170(wide angle view 170 degree fisheye lens)

    Sensor

    1/4" CMOS OV5640

    Lens size

    500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels

    Max. Resolution

    2592X1944

    Picture format

    MJPEG

    USB Protocal

    USB2.0 HS/FS, USB1.1 FS

    Support free driver

    USB Video Class(UVC)1.1

    Auto exposure AEC

    Support

    Auto white blance AEB

    Support

    Frame rate

    2592 (H) x 1944 (V) pixels  MJPEG 15fps      YUY2 3fps
    2048 (H) x 1536 (V) pixels  MJPEG 15ps       YUY2 3fps
    1600 (H) x 1200 (V) pixels  MJPEG 15fps      YUY2 3fps
    1920 (H) x 1080 (V) pixels  MJPEG 15fps      YUY2 3fps
    1280 (H) x 1024 (V) pixels  MJPEG 15fps      YUY2 7.5fps
    1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 7.5fps
    1024 (H) x 768 (V) pixels    MJPEG 30fps      YUY2 15fps
    800 (H) x 600 (V) pixels      MJPEG 30fps      YUY2 30fps
    640 (H) x 480 (V) pixels      MJPEG 30fps      YUY2 30fps
    320 (H) x 240 (V) pixels      MJPEG 30fps      YUY2 30fps

    Adjustable parameters

    Brightness/Contrast/Color saturation /Definition/Gamma/WB

    Night vision

    optional, can choose IR board

    view angle

    30-150 degree optional

    voltage

    DC 5V

    current

    150mA

    work temperature

    DEGREES(-20~70)

    Size

    32x32mm/38*38

    Support OS

    WinXP/Vista/WIN7/WIN8
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above

    Effective Pixels:

    2592 (H) x 1944 (V) pixels
    2048 (H) x 1536 (V) pixels
    1600 (H) x 1200 (V) pixels
    1920 (H) x 1080 (V) pixels
    1280 (H) x 1024(V) pixels
    1280 (H) x 720 (V) pixels
    1024 (H) x 768 (V) pixels
    800 (H) x 600 (V) pixels
    640 (H) x 480 (V) pixels
    320 (H) x 240 (V) pixels

    (Other special size resolution is customized)

    Signal Output: Serial data for USB standard compliant 2.0

    Performance:

    2592 (H) x 1944 (V) pixels  MJPEG 15fps      YUY2 3fps
    2048 (H) x 1536 (V) pixels  MJPEG 15ps       YUY2 3fps
    1600 (H) x 1200 (V) pixels  MJPEG 15fps      YUY2 3fps
    1920 (H) x 1080 (V) pixels  MJPEG 15fps      YUY2 3fps
    1280 (H) x 1024 (V) pixels  MJPEG 15fps      YUY2 7.5fps
    1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 7.5fps
    1024 (H) x 768 (V) pixels    MJPEG 30fps      YUY2 15fps
    800 (H) x 600 (V) pixels     MJPEG 30fps       YUY2 30fps
    640 (H) x 480 (V) pixels     MJPEG 30fps       YUY2 30fps
    320 (H) x 240 (V) pixels     MJPEG 30fps       YUY2 30fps

    Applications

    Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

    used for all kinds of machine as below:

    machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
    vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
    enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
    automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
    shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
    surveillance, endoscope, Medical auxiliary equipment, etc.
