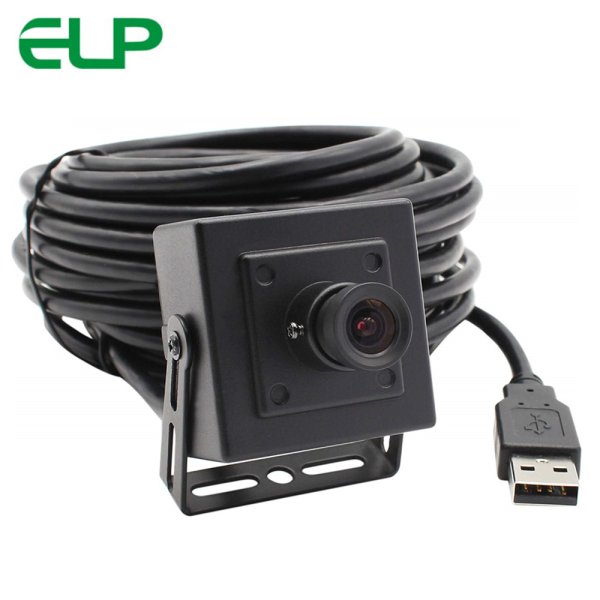

ELP Full HD 1080P Mini Micro USB Webcam with OV2710 Sensor 3.6mm Lens

Model: ELP-USBFHD01M-BL36

Add you Tags

Product 3/14

Return to the Product List

Details

Download

Feature:

* High Quality Sensor: 1/2.7" CMOS OV2710 Sensor

* Full HD 1080P: Max Resolution 1920x1080

* High Speed, high FPS:1920x1080 Mjpeg 30FPS, 1280x720 Mjpeg 60FPS, 640x480 Mjpeg 100FPS

* 3.6mm lens, HFOV about 91 degree (Many other lens optional)

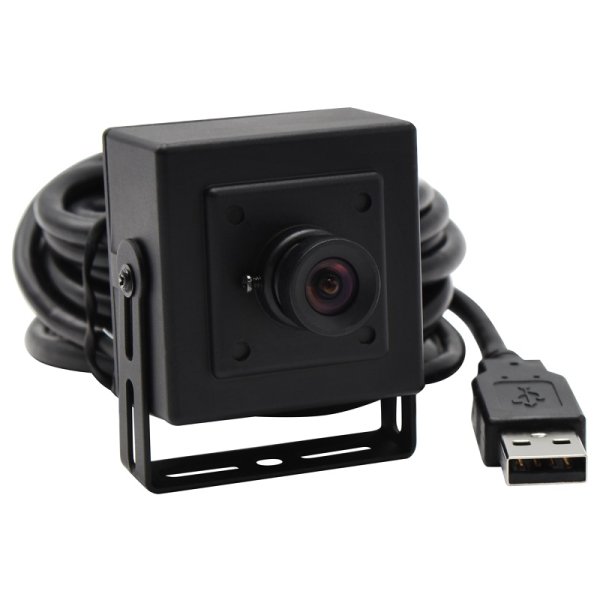

* Comes with small metal case.

* USB Cable: Standard 3m usb cable (other length cable optoinal)

* UVC Compliance: free driver, Plug & Play

* OTG support: can connect android tablet, smartphone... via OTG cable

* Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure changeable

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera...

General Description

The HD 1080P USB CMOS board camera (model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision, one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Specification:

Model	ELP-USBFHD01M-BL36
Sensor	OV2710
Lens Size	1/2.7 inches
Pixel Size	3.0um X 3.0um
Image Area	5856 µm x 3276 µm
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression Format	MJPEG / YUV2(YUYV)
Resolution & Frame Rate	1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps
Special Function	Lens correction/ Defective pixel correction/ Black sun cancellation
Mini illumination	0.05 Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port Type	USB2.0 High Speed (Support USB2.0 HS/FS, USB2.0 OTG)
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
Connecting Port Type	USB2.0 High Speed
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	M12 f=3.6mm, HFOV about 91 degree (Many other lens optional)
Night Vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED Board Power Connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	120mA~220mA
Working Temperature	-10～70℃
Storage Temperature	-20～85℃
Weight	About 360-370g
Cable	Standard 3m (optional 0.3m/0.5m/1m/2m/5m...)
Operating system request	WinXP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
Optional Models	ELP-USBFHD01M-BL21 (2.1mm) ELP-USBFHD01M-BL28 (2.8mm) ELP-USBFHD01M-BL36 (3.6mm) ELP-USBFHD01M-BL60 (6mm) ELP-USBFHD01M-BL80 (8mm)) ELP-USBFHD01M-BL12 (12mm) ELP-USBFHD01M-BL170 (Fisheye FOV about 154 degree) ELP-USBFHD01M-BL180 (Fisheye FOV >180 degree) ELP-USBFHD01M-BL100 (No distortion FOV 85) ELP-USBFHD01M-BH100 (No distortion FOV 105) ELP-USBFHD01M-BH110 (No distortion FOV 115) ELP-USBFHD01M-BH120 (No distortion FOV 125)
