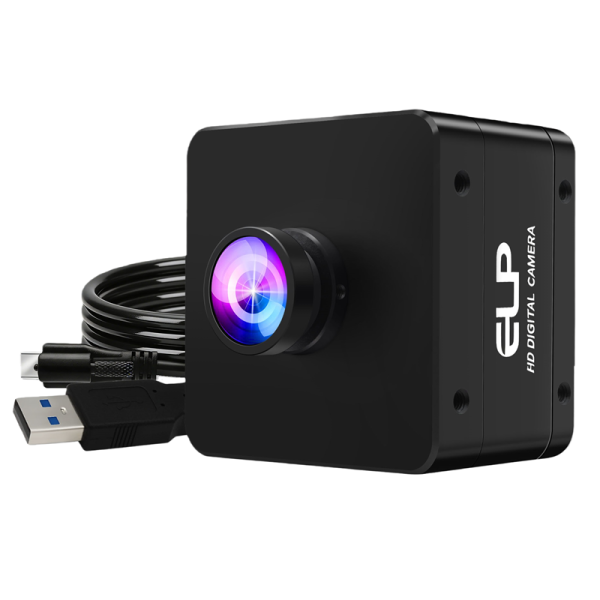

Model NO.:

ELP-U3CAM12MP01-CV100 (no distortion, HFOV 88°)

Optional Lens

M12 Normal Lens:

ELP-U3CAM12MP01-CL12 (12mm lens, HFOV 26°)

ELP-U3CAM12MP01-CL16 (12mm lens, HFOV 23°)

ELP-U3CAM12MP01-CL25 (12mm lens, HFOV 12°)

M12 No Distortion Lens:

ELP-U3CAM12MP01-CLC1100 (no distortion, HFOV 71°)

ELP-U3CAM12MP01-CV6 (no distortion, HFOV 53°)

ELP-U3CAM12MP01-CV100 (no distortion, HFOV 88°)

ELP-U3CAM12MP01-CH90 (no distortion, HFOV 90°)

ELP-U3CAM12MP01-CH100 (no distortion, HFOV 102°)

ELP-U3CAM12MP01-CH110 (no distortion, HFOV 118°)

M12 Fisheye Lens:

ELP-U3CAM12MP01-CL170 (fisheye, HFOV 164°)

ELP-U3CAM12MP01-CL185 (fisheye, HFOV 204°)

Image Sensor

SONY IMX577 (1/2.3” )

Max. Resolution

4000(H) *3000 (V)

Sensor Size/ Image Size

10.7mmX8.5mm/5.95mmX4.71mm

Pixel Size

1.55µm x 1.55µm

Compression Format

MJPEG  / YUY2 (YUYV)

Resolution & Frame Rate

(USB 3.0 Interface & Speed)

Under USB 3.0 Interface & Speed:

4000x3000@ 30fps MJPEG/YUY2 10fps

3840x2160@ 60fps MJPEG/YUY2 20fps

3264x2448@ 30fps MJPEG/YUY2 20fps

2560x1440@ 60fps MJPEG/YUY2 30fps

1920x1080@ 230fps MJPEG/YUY2 60fps

1280x720@ 230fps MJPEG/YUY2 120fps

640x360@ 230fps MJPEG/YUY2 230fps

Resolution & Frame Rate

(USB 2.0 Speed)

Under USB 2.0 Speed:

4000x3000@ 30fps MJPEG

3840x2160@ 30fps MJPEG

3264x2448@ 30fps MJPEG

2560x1440@ 60fps MJPEG

1920x1080@ 120fps MJPEG

1280x720@ 230fps MJPEG/YUY2 10ps

640x360@ 230fps MJPEG/YUY2 30fps

Center Definition

1000LW/PH (Center)

S/N Ratio

49dB

Sensitivity

0.65V/lux-sec@550nm

Minimum illumination

0.1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB 3.0 Interface

AEC/ AWB/ AGC

Support

Auto Focus

Support optional

Adjustable Parameters

Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure

Lens Parameter

f=3.24mm, M12 No distortion, HFOV is approximately 88°.

Optional Lenses:

M12 No distortion: 71°/ 88°/ 102°/ 118° / 127°

M12 Normal: 12°/ 23°/ 26°/ 61°/ 92°/ 116°

M12 Fish-eye: 164°/ 200°

(For other viewing angles, please contact us directly.)

Power Supply& Connector

USB Type-C Power Supply, Type-C

Power Voltage

DC 5V

Power Current

180-260mA

Size

50.2x50.2x33.5mm

Storage Temperature

-20°C to 85°C

Working Temperature

-10°C to 65°C

USB Cable

1.2m cable with USB3.0 Type-C port

Operating System Support

Win10/Win11 etc;

Linux with UVC;

MAC-OSX10.4.8 or later;

Android5.x or above
