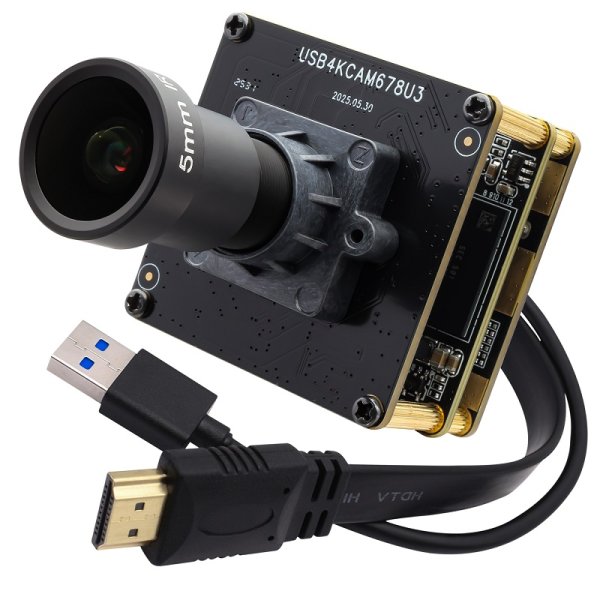

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera Module with M12 5mm Lens

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera Module with M12 5mm Lens

  • Model: ELP-USB4KCAM678U3-L5
Add to Cart:

Add you Tags
Details
Download
    Key Features:



    * Excellent Imaging: Features a large 1/1.8" Sony IMX678 sensor for superior low-light performance and stunning 4K resolution at up to 60FPS for ultra-smooth video.

    * Dual & Flexible Output: Equipped with both USB 3.0 and HDMI 2.0 interfaces, supporting three display modes (USB, HDMI, or simultaneous output) for maximum adaptability.

    * Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.

    * Complete Package: Comes with a standard M12 lens, necessary cables, and offers a compact 38x38mm board size for easy embedding.



    Specifications:

    Model

      ELP-USB4KCAM678U3-L5

    Sensor

    1/1.8” SONY IMX678

    Pixel Size

    2.0µm x 2.0µm

    Connecting Port Type

    USB 3.0 Interface &HDMI v2.0 Interface

    Display Modes

    I. USB Output

    II. HDMI Output

    III. USB Output +HDMI Output Simultaneous

    HDMI Output

    3840(H)*2160(V) HDMI 60fps

    USB Output

    Max / Default Resolution: 3840(H)*2160(V)

    Video Compression

    MJPEG / YUY2(YUYV) / H.264

    Resolution & Frame Rate

    3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps

    2560x1440 MJPEG 60fps/ H.264 60fps / YUY2 30fps

    1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    Image Processing Time

    About 10 seconds after opening the preview software

    Central Definition

    1000LW/PH(Center)

    S/N Ratio

    41dB

    Min illumination

    0.05Lux

    Shutter Type

    Electronic Rolling Shutter/ Frame Exposure

    AEC/AWB/AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance,

    Backlight Compensation, Exposure

    Lens Parameter

    f=5mm, M12 Mount,  HFOV is approximately 94°.

    Optional Lenses:

    M12 No distortion: 65°/ 85°/ 90°/ 100°

    M12 Normal: 25°/ 38°/ 94°/ 120°/ 130°

    M16: 58°/ 93°/ 110°

    (For other viewing angles, please contact us directly.)

    Power Supply & Interface

    USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

    Operating Voltage

    DC 5V

    Working Current

    700-780mA

    Board Size

    38x38mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    -10°C to 70°C

    USB Cable

    1.2m cable with Type-C port

    HDMI Cable

    1.5m cable with HDMI port

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC;

    MAC-OSX10.4.8 or later;

    Android5.x or above
