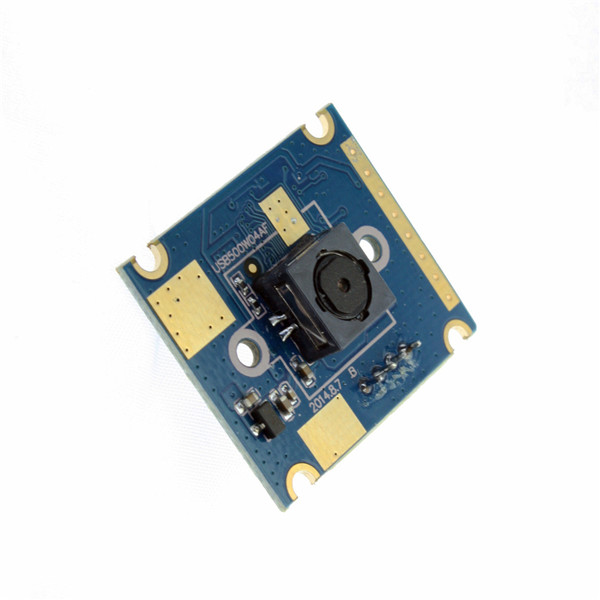

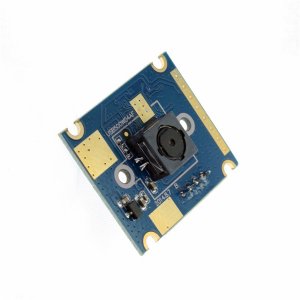

Module No.

ELP-USB500W04AF-A60

Sensor

OV5640 (1/4” )

Max. Resolution

2592 (H) *1944 (V)

Sensitivity

600mV/Lux-sec

Pixel Size

1.4µm x1.4µm

Image area

3673.6µmx2738.4µm

Maximum Image Transfer Rate

2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG

1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG

1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG

1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

Camera Board Assembly technique

SMT (ROSH)

Focus

Auto

Object distance

5CM-100M

Resolution

600LW/PH (Center)

interface

USB 2.0 High Speed

protocol

USB Video Class（UVC）

S/N Ratio

36dB

Dynamic Range

68dB

Shutter

Rolling shutter/ frame exposure

Package

CSP, Bare Die

AGC/AEC/AWB/ABF

Auto

Output Formats

YUYV/MJPEG

Adjustable parameter

Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus

Package

LQFN-40pin

Lens Parameter

Size:  1/4,  Iris:  F2.8,  Focus: 3.2mm,  FOV: 65Degree

Relative Illumination (Sensor): 70%

IR Filter: 650±10nm

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC5V

Power consumption

150mW （VGA）; 200mW （QSXGA）;

Module Size

32X25MM

Temperature (Operation)

-20°C to 70°C

Temperature (Stable Image)

0°C to 60°C

USB Cable

1M(2M/3M/5M Optional)

Operating system request

Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Certifications

FCC and CE
