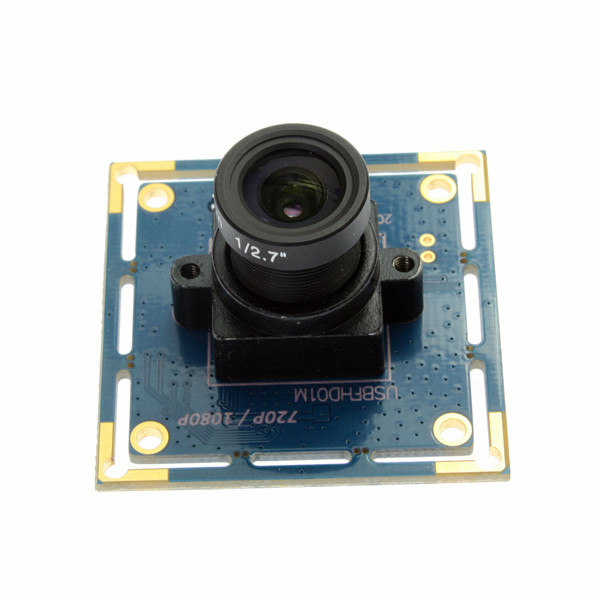

ELP High-Speed VGA 100fps USB Camera Module OV2710 Color Sensor Full HD 1080P Webcam with 3.6mm Lens

Model: ELP-USBFHD01M-L36-100FPS

Add you Tags

Product 3/5

Return to the Product List

Details

Download

Features:

Full HD 2MP 1080P USB Camera Module with M12 3.6mm Lens

* High frame rate: deliver 100fps@640*480, 60fp@1280X720, 30fps in 1920X1080 resolution.

* CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.

* Equipped with M12 3.6mm lens, HFOV 90 degree

* High speed USB 2.0 interface for high resolution PC camera interface.

* Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable

* Mini 38x38mm Board Size with 1m usb cable

* Free Driver: UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

Main Specifications

Model	ELP-USBFHD01M-L36 (3.6mm lens, HFOV 90 degree) option for: ELP-USBFHD01M-L21 (2.1mm lens, HFOV 115 degree) ELP-USBFHD01M-L28 (2.8mm lens, HFOV 110 degree) ELP-USBFHD01M-L60 (6mm lens, HFOV 53 degree) ELP-USBFHD01M-L80 (8mm lens, HFOV 42 degree) ELP-USBFHD01M-L12 (12mm lens, HFOV 25 degree)
Sensor	OV2710
Sensor Size	1/2.7 inch
Pixel Size	3μm x 3μm
image area	5856 μm x 3276 μm
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	320X240 QVGA MJPEG @100fps, YUY2 @30fps 352X288 CIF MJPEG @100fps, YUY2 @30fps 640X480 VGA MJPEG@100fps, YUY2 @30fps 800X600 SVGA MJPEG@60fps, YUY2 @21fps 1024X768 XGA MJPEG@30fps, YUY2 @6fps 1280X720 HD MJPEG@60fps, YUY2 @9fps 1280X1024 SXGA MJPEG@30fps, YUY2 @6fps 1920X1080 FHD MJPEG@30fps, YUY2 @6fps
Special function	Lens correction/ Defective pixel correction/ Black sun cancellation
Mini illumination	0. 05lux
Shutter Type	Electronic rolling shutter / Frame exposure
USB protocol	USB2.0 HS/FS
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard M12 mount 3.6mm lens, HFOV about 90 degree; optional 2.1mm/2.8mm/6mm/8mm/12mm lens, no distortion lens, fisheye lens 155 degree/ 195 degree
Night vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC 5V
Operating Voltage	120mA~220mA
Working current	0～60℃
Working temperature	-20～75℃
Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
