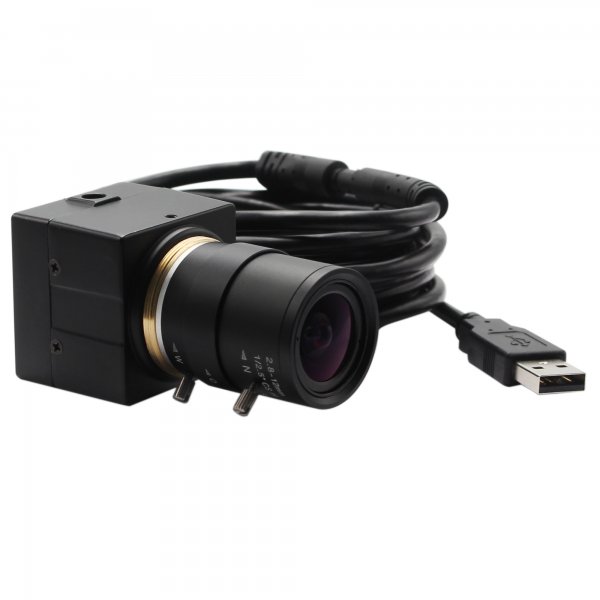

Free driver B/W varifocal global shutter camera raspberry pi AR0144 sensor for Gesture Recognition

Free driver B/W varifocal global shutter camera raspberry pi AR0144 sensor for Gesture Recognition

  • Model: ELP-USBGS720P02-SFV(2.8-12)
Add to Cart:

Add you Tags
Details
Download

    Features:


    * High quality Aptina AR0144 Sensor for high quality image
    * Shutter Type -Global shutter for fast computer vision
    * High frame rate - deliver 1280X720MJPEG@ 60fps
    * Black & white image
    * 2.8-12mm varifocal CS lens
    * With mini  industrial metal box housing

    * Improved image quality for fast moving objects
    Total Noise Floor Reduction, SNR Improvement
    High Dynamic Range
    Ideal for battery powered applications
    * UVC compliance for use in OS Windows,Linux, Android


    Specification:



    Model

    ELP-USBGS720P02-SFV(2.8-12)

    Sensor

    Aptina AR0144

    Lens Size

    1/4 inch

    Pixel Size

    3.0µm

    image area

    3888µm x 2430 µm

    Effective Pixels

    1280(H)X720(V)  1MP

    Compression format

    MJPEG / YUV2 (YUYV)

    Resolution & frame

    1280X720MJPEG@ 60fps YUY2@5fps
    800X600MJPEG@ 60fps YUY2@20fps
    640X480 MJPEG@ 60fps YUY2@ 30fps

    S/N Ratio

    38dB

    Dynamic Range

    63.9dB

    Sensitivity

    3.1V/lux-sec@550nm

    Mini illumination

    0.2 Lux

    Shutter Type

    Global Shutter

    Connecting Port type

    USB2.0 High Speed

    OTG protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    2.8-12mm Varifocal CS Lens (5-50mm CS Lens optional)

    Power supply connector

    USB BUS POWER  4P-2.0mm socket

    Work Power Voltage

    DC5V

    Work Power Current

    110mA~160mA

    Working temperature

     -10~70℃

    Storage temperature

     -20~75℃

    Board size /Weight

    38*38/32*32mm / About 30g

    Cable

    Standard 3m cables (2M,5M optional )
