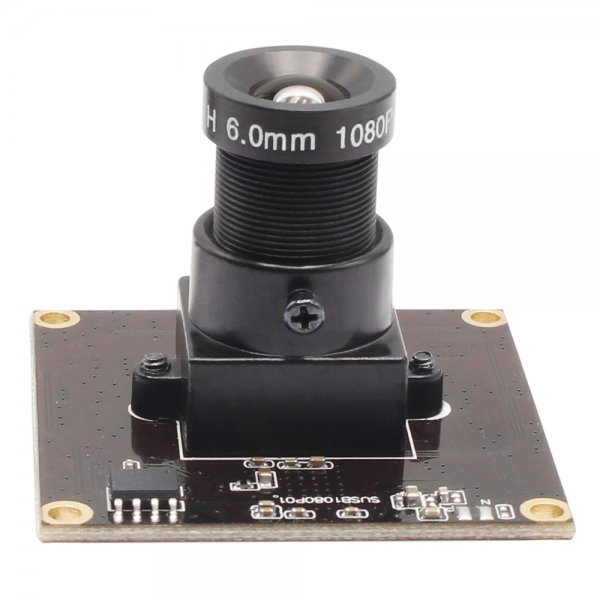

ELP SONY IMX291 UVC High Speed USB 3.0 camera module for machine vision ELP-SUSB1080P01-L60

ELP SONY IMX291 UVC High Speed USB 3.0 camera module for machine vision ELP-SUSB1080P01-L60

  • Model: ELP-SUSB1080P01-L60
Add to Cart:

Add you Tags
Details
Download

    Features:

    * Full HD 1080P Low illmination 0.01Lux USB Camera

    * Sony IMX322 Sensor 0.01Lux low illumination USB Camera

    * Mini micro USB webcam module, with standard 1m cable (2m, 3m  optional).

    *  UVC Camera with UVC for use in WinXP/Vista/WIN7/WIN8/9/10 Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

    * Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.


    Specification:

    Item

    USB3.0 Camera Module

    Model

    ELP-SUSB1080P01-L60 (6mm)

    Optional Model

    ELP-SUSB1080P01-L21 (2.1mm)                       ELP-SUSB1080P01-L28 (2.8mm)
    ELP-SUSB1080P01-L36 (3.6mm)                       ELP-SUSB1080P01-L29 (2.9mm)
    ELP-SUSB1080P01-L80 (8mm)                          ELP-SUSB1080P01-L12 (12mm)
    ELP-SUSB1080P01-L170 (fisheye lens, HFOV 140-150 degree)
    ELP-SUSB1080P01-L180 (fisheye lens, HFOV >180 degree)
    ELP-SUSB1080P01-LC1100 (No distortion lens, HFOV: 80-85 degree )

    All above models, specifications are same, just lens different

    Resolution & FPS

    1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
    1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
    640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps

    Sensor

    IMX291 Sensor

    Connecting Port Type

    USB3.0/USB2.0  High speed

    Sensor Size

    1/2.8 inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    2.9μm x 2.9μm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Mini illumination

    0.01Lux

    AEC

     Support

    Max. Resolution

    FULL HD 1920(H)x1080(V)pixels

    AEB

     Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    6mm lens (2.1mm/ 2.8mm/2.9mm, 3.6mm,  8mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree optional)

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1M/ Optional 2m,3m

    work temperature

     DEGREES(-20~70)

    Board Size/
    Weight

    38*38mm

    Certifications

    FCC and CE

    Power supply

    USB BUS POWER

    Power Supply

     DC 5V

    USB Protocol

     USB2.0 HS/FS

    Operating Voltage

    170mA~220mA

    OTG protocol

    USB2.0 OTG

    Special function

    USB 3.0 and low illumination

    Night vision

    Without (Do not advice Connect IR LED Board)

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 /Win9/ Win10
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
