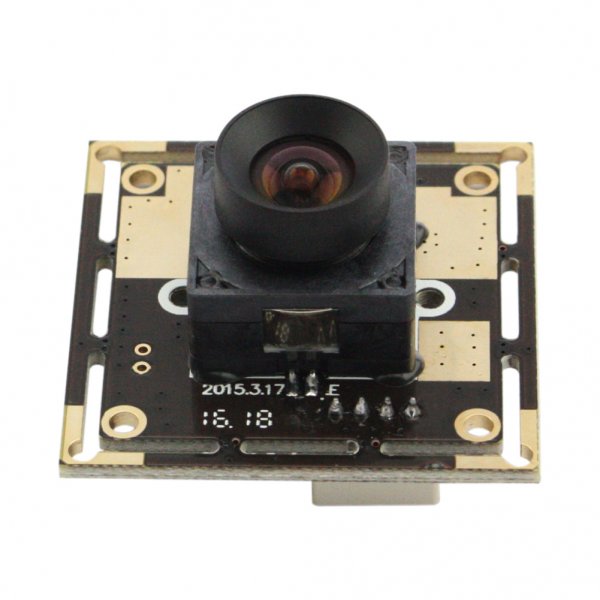

ELP free driver auto focus webcam ov5640 with 100 degree no distortion lens for document scanning

ELP free driver auto focus webcam ov5640 with 100 degree no distortion lens for document scanning

  • Model: ELP-USB500W02M-AF100
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 5MP 100 degree auto focus USB Camera module
    * 1/4” OV5640 CMOS sensor for high quality image
    * With HD 100degree no distortion lens
    * MJPEG/YUY2 dual video format optional
    * Mini size 38x38/32x32mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC



    Specification:

    Model

    ELP-USB500W02M-AF100

    Sensor

    OV5640

    Lens Size

    1/4 inches

    Pixel Size

    1.4µm x1.4µm

    image area

    3673.6µmx2738.4µm

    Max. Resolution

    2592(H) X 1944(V)

    Compression format

    MJPEG / YUV2(YUYV)

    Resolution & frame

    2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
    1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
    1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
    800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG

    Camera Board Assembly technique

      SMT (ROSH)

    Focus

    Auto

    Resolution

    600LW/PH (Center)

    S/N Ratio

    36dB

    Dynamic Range

    68dB

    Sensitivity

    600 mV/Lux-sec

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    Size: 1/4, 100 degree
    Relative Illumination (Sensor): 70%
    IR Filter: 650±10nm

    LED board power connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Power consumption

    150mW (VGA); 200mW (QSXGA)

    Working current

    active: 140 mA  standby: 20 µA

    Working temperature

     -20~70℃

    Storage temperature

     0~65℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard 1M / 2M,3M,5M optional

    Operating system request

    Win XP/Vista/Win7/Win8 /Win9/ Win10
     Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later/
    Android 4.0 or above with UVC

    Certificate

    CE&FCC
