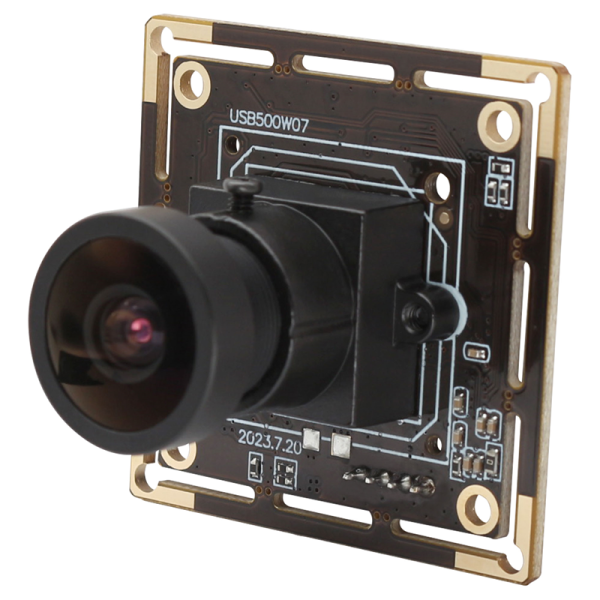

5MP USB Camera Module IMX335 Sensor 30fps with M12 2.9mm Lens

5MP USB Camera Module IMX335 Sensor 30fps with M12 2.9mm Lens

  • Model: ELP-USB500W07-L29
 Sold Out

Add you Tags
Details
Download

    Features:



    *5MP HD USB Camera Board with 1/2.8” IMX335 sensor



    *High resolution/Rate 2592x1944 MJPEG@30fps



    *Lens: M12 2.9mm lens, many other lens for optional



    *High speed USB 2.0 interface for high resolution PC camera interface


    *Super small outline and thin profile for embedded applications. 38x38mm/32x32mm optional


    *Low power consumption – ideal for portable equipment


    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above


    *Camera with UVC





    Specifications:

    Model

    ELP-USB500W07-L29 (M12 2.9mm lens)

    Sensor

    SONY IMX335 (1/2.8” )

    Max Resolution

    2592(H) *1944 (V)

    Pixel Size

    2.0µm x2.0µm

    Image Area

    5800µmx4750µm

    Picture Format

    MJPEG / YUY2 (YUYV)

    Resolution & Frame Rate

    2592x1944 MJPEG 30fps/ YUY2 1fps

    2048x1536 MJPEG 30fps/ YUY2 3fps

    1920x1080 MJPEG 30fps/ YUY2 3fps

    1600x1200 MJPEG 30fps/ YUY2 5fps

    1280x960 MJPEG 30fps/ YUY2 5fps

    1280x720 MJPEG 30fps / YUY2 5fps

    1024 x 768 MJPEG 30fps/ YUY2 5fps

    800 x 600 MJPEG 30fps / YUY2 20fps

    640x480 MJPEG 30fps / YUY2 30fps

    320x240 MJPEG 30fps / YUY2 30fps

    Center Definition

    1000LW/ PH (Center)

    S/ N (Signal Noise Ratio)

    30dB

    Sensitivity

    0.65V/lux-sec@550nm

    Min. illumination

    0.2 Lux

    Shutter

    Electronic rolling shutter / Frame exposure

    Interface

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Lens

    M12 2.9mm lens;



    optional for 2.1/3.6/2.8/6/8/12/16/25mm lens, No distortion lens, Fisheye lens

    Power Supply & Connector

    USB BUS POWER    4P-2.0mm socket

    Power

    DC 5V

    Current

    210mA

    Size

    38mm × 38mm (compatible 32X32mm)

    Storage Temperature

    -20°C to 75°C

    Working Temperature

    - 10°C to 65°C

    USB Cable

    1M(2M/3M/5M Optional)

    Operating System

    Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC

    Optional Models

    With no distortion lens:

    ELP-USB500W07-V83 (HFOV about 81 degree)

    ELP-USB500W07-L100 (HFOV about 81 degree)

    ELP-USB500W07-V100 (HFOV about 79 degree)

    ELP-USB500W07-LC1100 (HFOV about 62 degree)

    ELP-USB500W07-H100 (HFOV about 93 degree)

    ELP-USB500W07-H110 (HFOV about 107 degree)

    ELP-USB500W07-H120 (HFOV about 118 degree)



    With M12 lens:

    ELP-USB500W07-L21 (2.1mm, HFOV 101 degree)

    ELP-USB500W07-L361 (3.6mm, HFOV 81 degree)

    ELP-USB500W07-L281 (2.8mm, HFOV 102 degree)

    ELP-USB500W07-L601 (6mm, HFOV 53 degree)

    ELP-USB500W07-L80 (8mm, HFOV 39 degree)

    ELP-USB500W07-L12 (12mm, HFOV 23 degree)

    ELP-USB500W07-L16 (16mm, HFOV 18 degree)

    ELP-USB500W07-L25 (25mm, HFOV 10.5 degree)



    With Fisheye Lens:

    ELP-USB500W07-L170 (HFOV about 138 degree)

    ELP-USB500W07-L180 (HFOV anout 200 degree)



    With M12 2.8-12mm lens:

    ELP-USB500W07-FV
