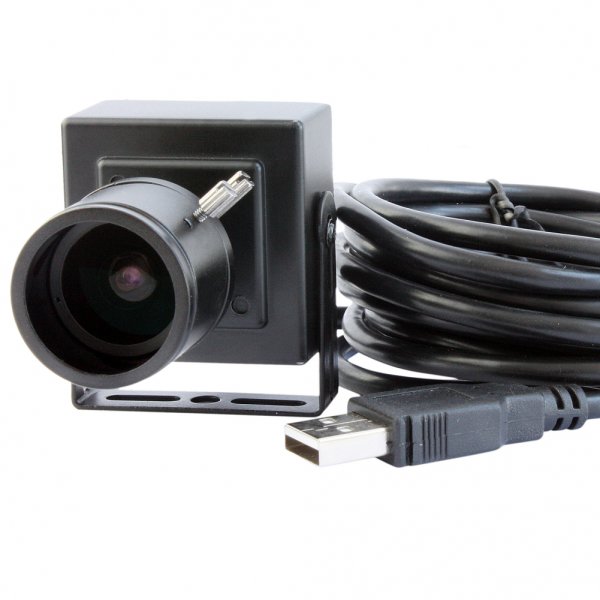

1.3Megapixel Low Light USB Camera Aptina AR0130 USB webcam with 2.8-12mm varifocal lens

1.3Megapixel Low Light USB Camera Aptina AR0130 USB webcam with 2.8-12mm varifocal lens

  • Model: ELP-USB130W01MT-BFV
Add to Cart:

Add you Tags
Details
Download

    Features: ​ ​

    * 1.3MP low illumination USB webcam

    * 1/3” Aptina AR0130 Color CMOS sensor for high quality image

    * 0.01 Lux Low illumination low light usb camera - ideal for any lighting condition

    * MJPEG/YUY2 dual video format optional

    * High speed USB 2.0 plug and play UVC Camera , OTG Support

    * USB PC camera with standard 3m cable (1m, 2m, 5m optional, also can customize the cable)

    * Free driver plug and play UVC USB Camera, compatible with respberry pi, Ubuntu, OpenCv, Amcap and many other software.

    * USB web camera, support WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

    * Well used for PC camera, ATM machine, kiosk, simple security system, Automatic vending machine...



    Specifications:

    Model

    ELP-USB130W01MT-BFV (2.8-12mm)

    Resolution & FPS

    1280X960 MJPEG@ 15fps YUY2@9fps               1280X720 MJPEG@ 30fps YUY2@15fps
    800X600 MJPEG@30fps YUY2@20fps                 640X480 MJPEG@ 30fps YUY2@ 30fps
    320X240 MJPEG@30fps YUY2@20fps                160X120 MJPEG@ 30fps YUY2@ 30fps

    Sensor

    Aptina AR0130

    Connecting Port Type

    USB2.0 High speed

    Sensor Size

    1/3 inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    3.75um

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Max. Resolution

    1280(H)X960(V)

    AEB  AEC

     Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens

     2.8-12mm varifocal lens
    Many other lens optional

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 3m / Optional 0.3m 1m,2m,5m...

    work temperature

     DEGREES(-20~70)

    Size

    41x41mm

    Certifications

    FCC and CE

    Mini illumination

    0.01lux

    Power Supply

     DC 5V

    USB Protocol

    USB2.0 HS/FS

    Operating Voltage

    100mA~160mA

    OTG protocol

    USB2.0 OTG

    Special function

    low light, varifocal lens

    Support OS

    WinXP/Vista/WIN7/WIN8 /WIN9/WIN10
    Linux with UVC
     Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above

    Optional Models

    ELP-USB130W01MT-BL21 (2.1mm)                  ELP-USB130W01MT-BL2 8(2.8mm)
    ELP-USB130W01MT-BL60 (6mm)                     ELP-USB130W01MT-BL80 (8mm)
    ELP-USB130W01MT-BL12 (12mm)                   ELP-USB130W01MT-BL170
    ELP-USB130W01MT-BL180 (Fish-eye lens)    ELP-USB130W01MT-PL37
    ELP-USB130W01MT-BL100 (F1 no distortion lens)
    Specifications are same,  lens different .
