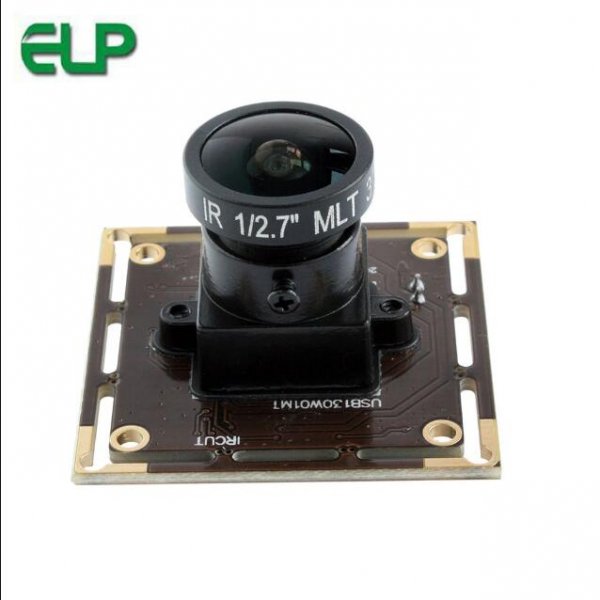

1.3megapixel AR0130 low illumination wide angle USB camera with fisheye lens ELP-USB130W01MT-L170

Model: ELP-USB130W01MT-L170

Add you Tags

Product 4/22

Return to the Product List

Details

Download

Features:

*960P resolution 1280x960P USB Camera Module

*Wide angle fisheye USB Camera module

*Android&Linux system support Camera USB

* CMOS Camera Module USB with Micron AR0130 960P sensor

*High speed USB 2.0 UVC USB PC camera

*0.01Lux Low illumination USB webcam

*low light performance – ideal for any lighting condition

*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above

*Camera with UVC

Specification:

Model	ELP-USB130W01MT-L170
Resolution & FPS	1280X960 MJPEG@ 15fps YUY2@9fps 1280X720 MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps 160X120 MJPEG@ 30fps YUY2@ 30fps
Sensor	Aptina AR0130	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	3.75um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	1280(H)X960(V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens	Fisheye 170 degree lens (HFOV 116 degree, VFOV:86 degree)	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)
Board Size	38x38mm/32x32mm	Certifications	FCC and CE
Mini illumination	0.01lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	100mA~160mA
OTG protocol	USB2.0 OTG	Special function	Wide angle
Night vision	Standard without night vision (Can connect IR LED board to get night vision function)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
Optional Models	ELP-USB130W01MT-L28 (2.8mm) ELP-USB130W01MT-L36 (3.6mm) ELP-USB130W01MT-L60 (6mm) ELP-USB130W01MT-L80 (8mm) ELP-USB130W01MT-L12 (12mm) ELP-USB130W01MT-L21 (2.1mm) ELP-USB130W01MT-L180 (Fish-eye lens) ELP-USB130W01MT-FV (2.8-12mm) Specifications are same, only lens different .
