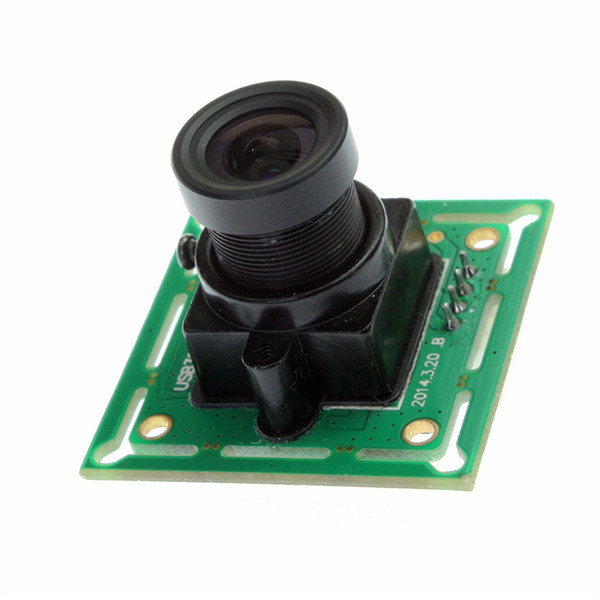

ELP VGA 60FPS USB Camera Module USB2.0 OV7725 Color Sensor Support YUY2 and MJPEG with 3.6mm Lens

ELP VGA 60FPS USB Camera Module USB2.0 OV7725 Color Sensor Support YUY2 and MJPEG with 3.6mm Lens

  • Model: ELP-USB30W02M-L36
Add to Cart: Units:  100

Add you Tags
Details
Download
    Features

    *0.3MP USB Camera Module , VGA max resolution 640x480,
    *High frame rate 60fps VGA 640X480
    *YUY2 and MJPEG compression format optional
    *CMOS sensor 1/4" inch OV7725 for high quality image and low power consumption
    *With M12 3.6mm Lens
    *High speed USB 2.0 interface
    *Super small outline and thin profile for embedded applications(Mini size 32*32/26*26mm)
    *Free Driver for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
    *Camera with UVC





    Main Specifications

    Model

    ELP-USB30W02M-L36 (3.6mm lens, HFOV 56 degree )



    other lens for options:

    ELP-USB30W02M-L28 (2.8mm lens, HFOV 75 degree )

    ELP-USB30W02M-L21 (2.1mm lens, HFOV 72 degree )

    ELP-USB30W02M-L60 (6mm lens, HFOV 37 degree )

    ELP-USB30W02M-L80 (8mm lens, HFOV 28 degree )

    ELP-USB30W02M-L12 (12mm lens, HFOV 17 degree )

    Sensor

    OV7725

    Lens Size

    1/4 inch

    Pixel Size

    6.0um X 6.0um

    image area

    3984 µm x 2952 µm

    Max. Resolution

    640(H)X480(V)

    Compression format

    MJPEG  /  YUV2(YUYV)

    Resolution & frame

    640X480  MJPEG@ 60fps YUY2@ 30fps/ 480X480  MJPEG@ 30fps YUY2@ 30fps

    450X450  MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps

    320X240  MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps

    S/N Ratio

    50dB

    Dynamic Range

    60dB

    Sensitivity

    3.8V/lux-sec@550nm

    Mini illumination

    0. 2lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard M12 mount 3.6mm lens, HFOV about 56 degree/ VFOV 41 degree;



    optional 2.1/2.8/6/8/12mm/ no distortion lens, FOV(D)170 Degree lens

    Night vision

    Need to equipped IR Sensor Lens and IR LED Board

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC 5V

    Operating Voltage

    100mA~160mA

    Working current

     -10~70℃

    Working temperature

    -20~85℃

    Board size /Weight

    32X32mm(Compatible 26X26mm)/ about 30g

    Cable

    Standard  1M / optional 2M,3M,5M

    Operating system request

    WinXP/Vista/Win7/Win8/Win10/Win11

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC
