ELP 20MP USB3.0 Camera Module 1/1.8 AR2020 Sensor with Autofocus Lens No Distortion 95 Degree

Model: ELP-U3CAM20MP01-AFV100

Add you Tags

Product 2/4

Return to the Product List

Details

Download

Key Features:

* Excellent Sensor Performance: Features a large 1/1.8'' Onsemi AR2020 sensor, which is the high standard in terms of image quality and sensitivity performance.

* High Resolution 20MP @27.5FPS: Delivers stunning 5120x3840 resolution at a fluid 27.5 frames per second via MJPEG, ensuring incredibly smooth and detailed video.

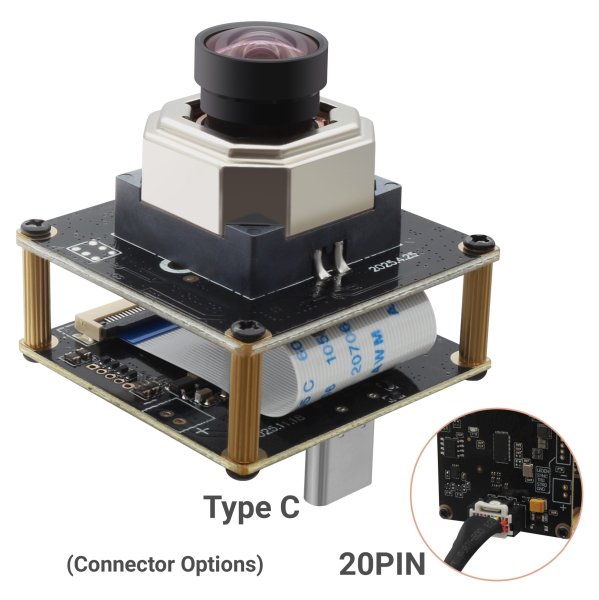

* USB3.0 Output & Type C or 20PIN Interface: Equipped with Type C or 20-Pin interfaces and USB3.0 output, improving the high speed to make sure you will not have issues with dropped frames .

* Autofocus Lens: with fast autofocus lens, no distortion about HFOV 95 degree

* Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.

Specifications:

Model	ELP-U3CAM20MP01-AFV100 (Autofocus lens, no distortion HFOV 95°)
Options Lens	M12 Autofocus No Distortion Lens: ELP-U3CAM20MP01-AFV100 (No Distortion Lens, HFOV 95°) ELP-U3CAM20MP01-AFV6 (No Distortion Lens, HFOV 60°) ELP-U3CAM20MP01-AFH90 (No Distortion Lens, HFOV 85°) M12 Autofocus Nomal Lens: ELP-U3CAM20MP01-AFL39 (3.9mm Lens, HFOV 110°) ELP-U3CAM20MP01-AFL5 (5mm Lens, HFOV 88°) ELP-U3CAM20MP01-AFL16 (16mm Lens, HFOV 22°)
Sensor	1/ 1.8” Onsemi AR2020
Max/ Default Resolution	5120(H)*3840(V)
Pixel Size	2.0 µm x 2.0 µm
Video Compression	MJPEG / YUY2(YUYV)
Resolution & Frame Rate (USB 3.0 Interface & Speed)	Under USB 3.0 Interface & Speed: 5120x3840 MJPEG 27.5fps/ YUY2 7.5fps 5120x2880 MJPEG 30fps/ YUY2 10fps 4608x3456 MJPEG 27.5fps/ YUY2 10fps 4096x3072 MJPEG 27.5fps/ YUY2 15fps 4000x3000 MJPEG 27.5fps/ YUY2 15fps 4096x2160 MJPEG 30fps/ YUY2 20fps 3840x2160 MJPEG 30fps/ YUY2 23fps 3264x2448 MJPEG 27.5fps/ YUY2 23fps 2592x1944 MJPEG 27.5fps/ YUY2 27.5fps 2560x1440 MJPEG 30fps/ YUY2 30fps 2048x1536 MJPEG 27.5fps/ YUY2 27.5fps 1600x1200 MJPEG 27.5fps/ YUY2 27.5fps 1920x1080 MJPEG 30fps/ YUY2 30fps 1280x960 MJPEG 27.5fps/ YUY2 27.5fps 1280x720 MJPEG 30fps/ YUY2 30fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps
Resolution & Frame Rate (USB 2.0 Speed)	Under USB 2.0 Speed: 5120x3840 MJPEG 20fps 5120x2880 MJPEG 23fps 4608x3456 MJPEG 23fps 4096x3072 MJPEG 27.5fps 4000x3000 MJPEG 27.5fps 4096x2160 MJPEG 30fps 3840x2160 MJPEG 30fps 3264x2448 MJPEG 27.5fps 2592x1944 MJPEG 27.5fps 2560x1440 MJPEG 30fps 2048x1536 MJPEG 27.5fps 1600x1200 MJPEG 27.5fps 1920x1080 MJPEG 30fps 1280x960 MJPEG 27.5fps/ YUY2 7.5fps 1280x720 MJPEG 30fps/ YUY2 10fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps
Central Definition	1000LW/PH (Center)
S/N Ratio	41dB
Min illumination	0.1Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	M12 Mount Autofocus Lens, No Distortion, f=3.24mm, HFOV is approximately 95°; Optional Lenses: M12 No distortion: 60°/ 85°/ 95° M12 Normal: 22°/ 88°/ 110°
Power Supply & Interface	USB Type-C Power Supply, Type-C Interface
Operating Voltage	DC 5V
Working Current	220-260mA
Dimension	38x38mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1.2m cable with USB3.0 Type-C port (USB 3.0 20-Pin Connector optional)
Operating System Request	Win10/Win11 etc. Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above
