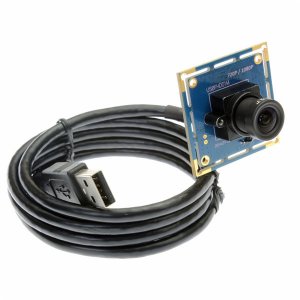

High-Speed 60fps HD USB Camera Module USB2.0 OV2710 Color Sensor MJPEG Format 3.6MM Lens

High-Speed 60fps HD USB Camera Module USB2.0 OV2710 Color Sensor MJPEG Format 3.6MM Lens

  • Model: ELP-USBFHD01M-L36-60FPS
Add to Cart:

Add you Tags
Details
Download

    1280X720P 60fps HD USB Camera Module USB2.0 OV2710 Color Sensor MJPEG Format 3.6MM Lens

    Main Specifications

    Model

    ELP-USBFHD01M-L36-60FPS

    Sensor

    OV2710

    Sensor Size

    1/2.7 inch

    Pixel Size

    3μm x 3μm

    image area

    5856 μm x 3276 μm

    Max. Resolution

    FULL HD 1920(H)X1080(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    320X240  QVGA  MJPEG @120fps/  352X288 CIF  MJPEG @120fps

    640X480  VGA  MJPEG@120fps/   800X600 SVGA  MJPEG@60fps

    1024X768  XGA  MJPEG@30fps/  1280X720  HD   MJPEG@60fps

    1280X1024  SXGA MJPEG@30fps/  1920X1080 FHD  MJPEG@30fps

    Special function

    Lens correction/ Defective pixel correction/ Black sun cancellation

    Mini illumination

    0. 05lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    USB protocol

    USB2.0 HS/FS

    Connecting Port type

    USB2.0 High Speed

    OTG protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard 3.6 mm, optional/2.5/2.8/3.6/6mm/FOV(D)187 Degree/170 Degree

    Night vision

    Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC5V

    Operating Voltage

    120mA~220mA

    Working current

     0~60℃

    Working temperature

    -20~75℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard  1M / optional 2M,3M,5M

    Operating system request

    WinXP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC
