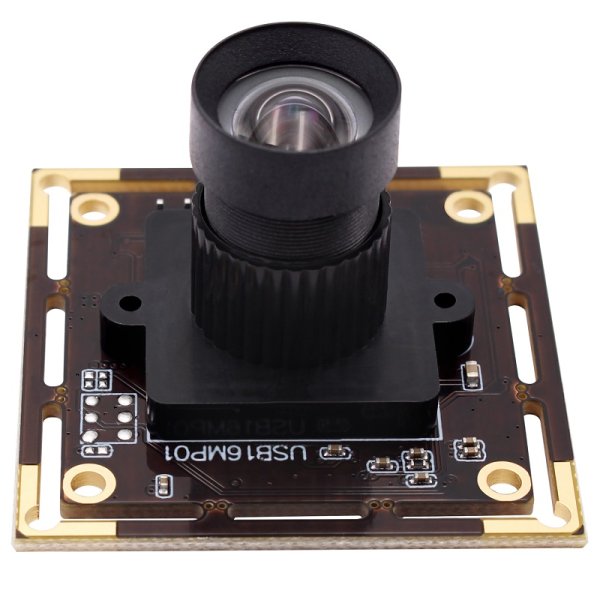

High resolution 16MP IMX298 CMOS Sensor HD mini USB Camera Module free driver for document shooting

Model: ELP-USB16MP01-L75

Add you Tags

Product 9/20

Return to the Product List

Details

Download

Features:

1. High Resolution 16MP Mini HD USB Camera Module

2. HD USB webcam camera module With 1/2.8 inch IMX298 Sensor

2. Max Resolution: 4656(H) X 3496(V)

3. With No distortion lens, FOV is about 76 degree (Many other lens optional)

4. UVC free driver, Plug and Play

5. Mjpeg/YUY2 compression

6. Mini micro USB webcam with Size 38x38mm

7. Support different operating systems, different preview softwares.
-Support living streaming software, Skype, Zoom, Facetime, Youtube...
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2, Camera Fi, Photo Booth....
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...

Specifications:

Model	ELP-USB16MP01-L75
Optional Models	With no distortion lens: ELP-USB16MP01-LC1100 (FOV 63 degree) ELP-USB16MP01-L75 (FOV 76 degree) ELP-USB16MP01-V100 (FOV 80 degree) ELP-USB16MP01-H100 (FOV 95 degree) ELP-USB16MP01-H110 (FOV 107 degree) ELP-USB16MP01-H120 (FOV 118 degree) With normal lens: ELP-USB16MP01-F28 (FOV 90 degree) ELP-USB16MP01-F36 (FOV 76 degree) With fisheye lens: ELP-USB16MP01-L170 (FOV1 39 degree) ELP-USB16MP01-L180 (FOV >180 degree)
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG 10fps/ YUY2 1fps 4208 x 3120 MJPEG 10fps/ YUY2 1fps 4160 x 3120 MJPEG@10fps YUY2@1fps 4000 x 3000MJPEG@10fps YUY2@1fps 3840 x 2160 MJPEG@10fps YUY2@1fps 3264 x 2448MJPEG@10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps 2320 x 1744MJPEG@30fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps 1920 x 1080MJPEG@30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps 1280 x 960MJPEG@30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps 1024 x 768MJPEG@30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps 640 x 480MJPEG@30fps YUY2@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	Standard No distortion lens, FOV about 76 degree. Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc.
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	150mA~240mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size /Weight	38X38mm (Compatible 32X32mm) / about 30g
Cable	Standard 1m / Optional 2m,3m,5m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
