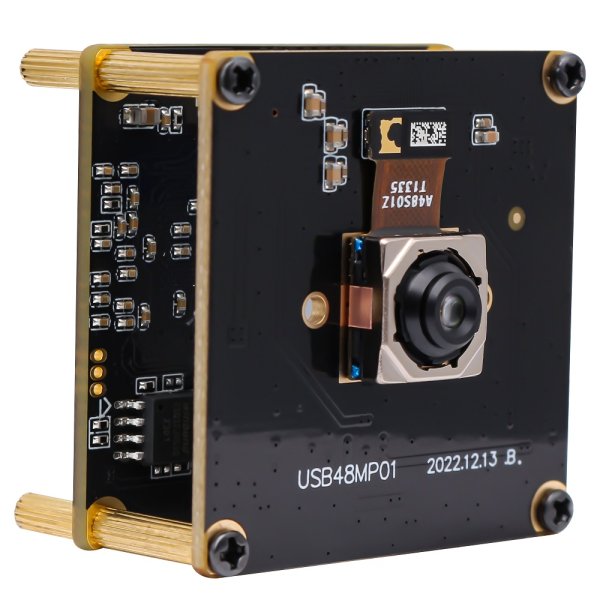

ELP high resolution free driver 48MP autofocus usb camera module

ELP high resolution free driver 48MP autofocus usb camera module

  • Model: ELP-USB48MP01-AF70
Add to Cart:

Add you Tags
Details
Download

    General Description:

    This 48MP High resolution Autofocus USB Camera is baded on Big 1/2" 48MP GM1 sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera.  Fast auto control the focusing process to capture the moving objects, works like the human eye. and shots the imaging you want.  Ultra 8000x6000 resolution meets application where high resolution images and video with autofocus capabilities are required.



    -High Quality Imaging:  8000x6000 resolution, adpots big 1/2" 48mp sensor for sharp image.

    -Fast Autofocus: 200ms fast autofocus.  Shoot objects in close and far distance.

    -High Color fidelity:  the camera works like human eye,  get sharp image and accurate color reproduction. WIth super image reality.

    -Driver free, Plug & Play: UVC-compliant, free driver,easy operate.

    -Applications: Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......

    -Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

      Comptible with  Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....



    Specifications:

    Model

    ELP-USB48MP01-AF70

    Sensor

    GM1 sensor

    Max. Resolution

    8000 (H) *6000 (V)

    Lens Size

    1/2 inch (4:3)

    Compression Format

    MJPEG / YUV2 (YUYV)

    Resolution & Frame Rate

    8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG

    3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG

    1280x720 @ 30fps MJPEG

    Surface Mount Technology

    SMT

    Focus Speed

    Fast About 200ms

    Central Definition

    1000LW/PH (Center)

    S/N Ratio

    36dB

    Dynamic Range

    82dB

    Sensitivity

    1.4V/lux-sec@550nm

    Min illumination

    0.3lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port Type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Exposure

    Lens Parameter

    Size 1/2

    DFOV About 82 degree

    HFOV About 70 degree

    Mount M8.15 *P0.35

    Power Supply

    USB BUS POWER  4P-2.0mm Socket

    Operating Voltage

    DC5V

    Working Current

    550Ma- 610mA

    Board Size

    Double-deck, 38mm × 38mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    0°C to 70°C

    USB Cable

    Standard 1m / optional 2m...

    Operating System Request

    Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
