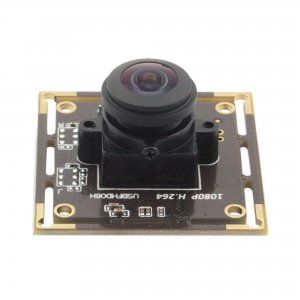

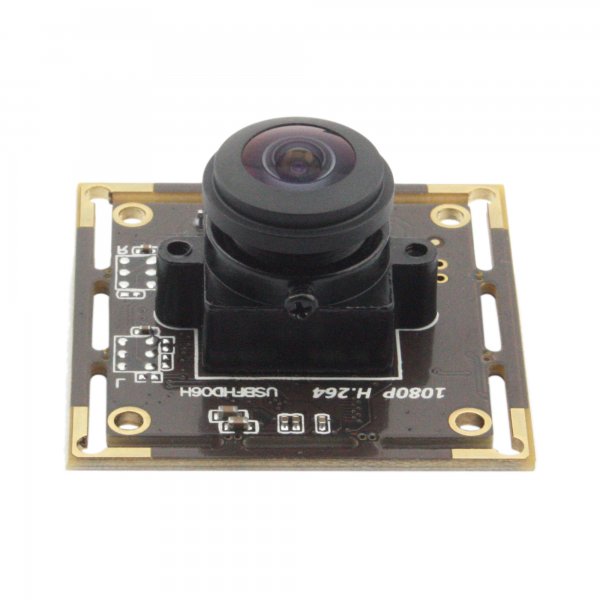

ELP 2MP Full HD 1080P UVC free driver low light imx322 usb camera wide angle for android

ELP 2MP Full HD 1080P UVC free driver low light imx322 usb camera wide angle for android

  • Model: ELP-USBFHD06H-L180
Add to Cart:

Add you Tags
Details
Download

    Features:
    * 2MP 1080P H.264 USB Camera module with 180 degree wide angle fisheye lens
    * 1/2.9” Sony IMX323 sensor for high quality image
    * 0.01 Lux Low illumination - ideal for any lighting condition
    * With HD 180 degree M12 lens
    * With microphone for audio recording
    * H.264/MJPEG/YUY2 dual video format optional
    * Mini size 38x38/32x32mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
    * Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.


    Why Choose H.264 camera?


    1. Has higher coding efficiency.
    2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
    3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…




    Specification:


    Model

    ELP-USBFHD06H-L180

    Item

     2MP Low illumination USB camera module with fisheye lens

    Resolution & FPS

    1920 x 1080  H.264/MJPEG 30fps                          1280 x 720    H.264/MJPEG 30fps
    800 x 600   H.264 /MJPEG 30fps     YUY2 15fps
    640 x 480   H.264 /MJPEG/YUY2 30fps                  640 x360   H.264 /MJPEG/YUY2 30fps
    352 x 288   H.264 /MJPEG/YUY2 30fps                  320 x 240   H.264 /MJPEG/YUY2 30fps

    Sensor

    IMX322

    Connecting Port Type

    USB2.0 High speed

    Sensor Size

    1/2.9 inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    2.8µm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Max. Resolution

    1920 (H) *1080 (V)

    AEB  AEC

     Support

    Picture format

    H.264 MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    4025 L180 lens

    HFOV>180 degree, VFOV 120
    (2.1mm,2.8mm, 3.6mm,6mm,8mm,12mm,no distorion lens,L170..Many other lens optional)

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1m / Optional 2m,3m,5m

    work temperature

     DEGREES(-20~70)

    Board Size

    38x38mm/32x32mm

    Certifications

    FCC and CE

    Mini illumination

    0.01lux

    Power Supply

     DC 5V

    USB Protocol

     USB2.0 HS/FS

    Operating Voltage

    140mA~190mA

    OTG protocol

    USB2.0 OTG

    Special function

    Low illumination, with microphone

    Night vision

     without night vision
    (Can connect IR LED board to get night vision function)

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 /WIN9/WIN10
    Linux with UVC
     Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above

    Optional Models

    ELP-USBFHD06H-L21(2.1mm)                                  ELP-USBFHD06H-L36(3.6mm)
    ELP-USBFHD06H-L37(3.7mm)                                  ELP-USBFHD06H-L60(6mm)
    ELP-USBFHD06H-L80(8mm)                                     ELP-USBFHD06H-L12(12mm)
    ELP-USBFHD06H-L170(Fisheye lens)                     ELP-USBFHD06H-L180(Fisheye lens)
    ELP-USBFHD06H-L100 (No distortion lens  HFOV 80 degree  VFOV 48 degree)
    ELP-USBFHD06H-H100 (No distortion lens  HFOV 95 degree  VFOV 62 degree)
    ELP-USBFHD06H-H110 (No distortion lens --3% distortion  HFOV 109 degree  VFOV 72 degree)
    ELP-USBFHD06H-H120 (No distortion lens--3% distortion   HFOV 120 degree  VFOV 82 degree)
    ......
