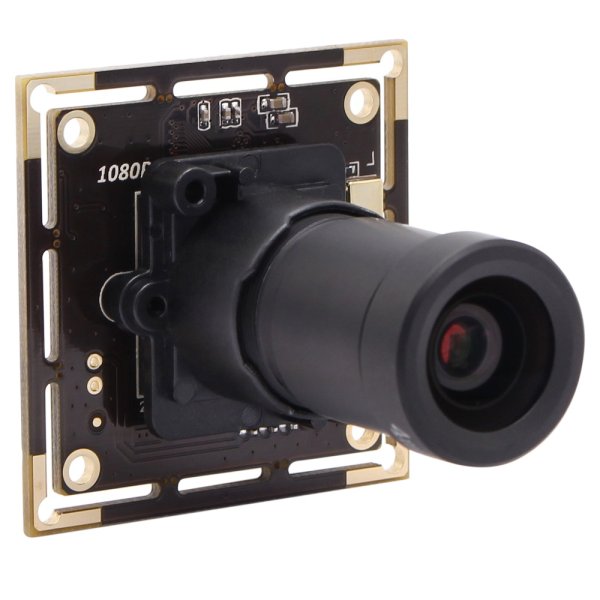

ELP 1/2.9 Inch IMX323 2MP Full HD1080P USB Camera 0.01lux Low Illmination with Black Light Lens

ELP 1/2.9 Inch IMX323 2MP Full HD1080P USB Camera 0.01lux Low Illmination with Black Light Lens

  • Model: ELP-USBFHD06H-LH4
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 2Megapixel Full HD 1080P USB Camera with 4mm black light lens

    * USB Camera with 1/2.9" SONY IMX322 CMOS Sensor USB webcam low illumination

    * H.264, Mjpeg YUY2 Camera module With audio microphone

    * USB Camera low light, with standard 1m cable (2m, 3m, 5m optional).

    * Full HD USB Camera for  Android/ WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC

    * 0.01Lux low illumination Camera USB, Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.

    * UVC Free driver, Plug & Play



    Specifications:



    Item
    2MP Low illumination USB camera
    with 4mm black light lens
    Model
    ELP-USBFHD06H-LH4 (4mm black light lens)
    Optional Models
    ELP-USBFHD06H-LH6 (6mm black light lens)
    ELP-USBFHD06H-LH8 (8mm black light lens)
    All above models, specifications are same, just lens different, all black light lens
    Resolution & FPS
    1920 x 1080  H.264/MJPEG 30fps
    1280 x 720    H.264/MJPEG 30fps     ​
    800 x 600   H.264 /MJPEG 30fps     YUY2 15fps                             ​
    640 x 480   H.264 /MJPEG/YUY2 30fps
    640 x360   H.264 /MJPEG/YUY2 30fps  ​352 x 288   H.264 /MJPEG/YUY2 30fps
    320 x 240   H.264 /MJPEG/YUY2 30fps
    Sensor
    IMX323
    Connecting Port Type
    USB2.0 High speed
    Sensor Size
    1/2.9 inch
    Support free driver
    USB Video Class(UVC)
    Pixel Size
    2.8µm
    Shutter Type
    Electronic rolling shutter/ Frame exposure
    Max. Resolution
    1920 (H) *1080 (V)
    AEB  AEC
    Support
    Picture format
    H.264 MJPEG or YUY2(YUYV)
    AGC
    Support
    Lens Parameter
    M16 Black light 4mm lens  ​ ​ optional 6mm/8mm black light lens
    Adjustable parameters
    Brightness/Contrast/Saturation, ​Hue, Sharpness,Gamma, Exposure ​White balance,Backlight Contrast
    Cable
    Standard 1m / Optional 2m,3m,5m...
    work temperature
    DEGREES(-20~70)
    Board Size
    38x38mm/32x32mm
    Certifications
    FCC and CE
    Mini illumination
    0.01lux
    Power Supply
    DC 5V
    USB Protocol
    USB2.0 HS/FS
    Operating Voltage
    140mA~190mA
    OTG protocol
    USB2.0 OTG
    Special function
    Low illumination, with microphone
    H.264 compression, Black light lens
    Night vision
    without night vision ​(Can connect IR LED board to get night vision function)
    LED board power connector
    Support, 2P-2.0mm socket
    Support OS
    WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11
    ​Linux with UVC ​
    Mac-OS X 10.4.8 or later
    ​Wince with UVC,
    ​Android 4.0 or above
