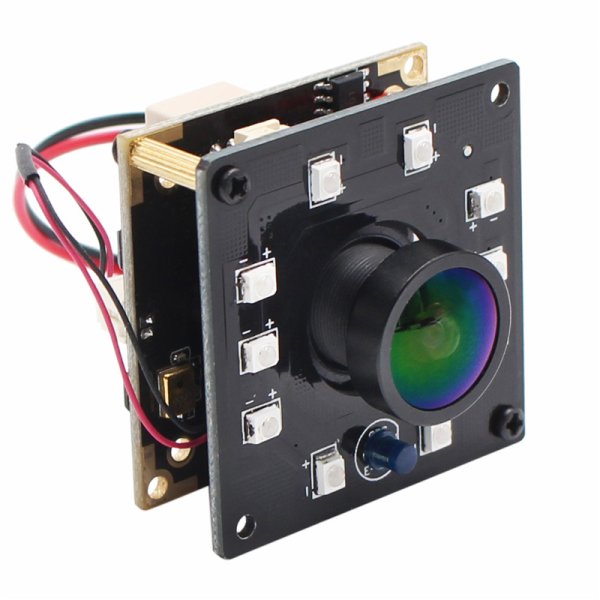

ELP 2 megapixel Full HD 1080P infrared UVC Camera USB wide angle with IR LED board

Model: ELP-USBFHD05MT-KRL170

Add you Tags

Product 5/6

Return to the Product List

Details

Download

Features:

*CMOS Sensor 1/2.7" OV2710 CMOS USB Camera

*IR night vision USB Camera Module

*With IR LED board, With night vision function. IR range about 10-15m

*With wide angle fisheye lens

*High frame rate– deliver 30 fps in 1920*1080 resolution, 100-120fps at 640*480 resolution

*Low power consumption – ideal for portable equipment. usb charger camera

*UVC USB infrared Camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

*Support OTG Function, OTG usb camera

Specifications:

Model	ELP-USBFHD05MT-KRL170
Optional Models	ELP-USBFHD05MT-KRL21 (2.1mm) ELP-USBFHD05MT-KRL28 (2.8mm) ELP-USBFHD05MT-KRL36 (3.6mm) ELP-USBFHD05MT-KRL60 (6mm) ELP-USBFHD05MT-KIR80 (8mm) ELP-USBFHD05MT-KRL12 (12mm) ELP-USBFHD05MT-KRL100 (No distortion lens, HFOV about 85 degree) ELP-USBFHD05MT-KRL170 (fisheye lens, HFOV about 140degree) ELP-USBFHD05MT-KRL156 (fisheye lens, HFOV > 180 degree) All above models, specifications are same, just lens different
Sensor	1/2.7 inches OV2710
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression Format	MJPEG / YUV2（YUYV）
Resolution & Frame Rate	320X240 QVGA MJPEG @100fps/ 352X288 CIF MJPEG @100fps 640X480 VGA MJPEG@100fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
Special Function	Lens correction/ Defective pixel correction/ Black sun cancellation
Mini Illumination	0lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port type	USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class（UVC）
AEC, AEB, AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	L170 fisheye lens (FOV about 140 degree, many other lens optional)
Night Vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working Current	120mA~220mA
Working Temperature	-10～70℃
Storage Temperature	-20～85℃
Board Size	38x38mm
Cable	Standard 1m (optional 2/3/5/0.3/0.5m...)
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
