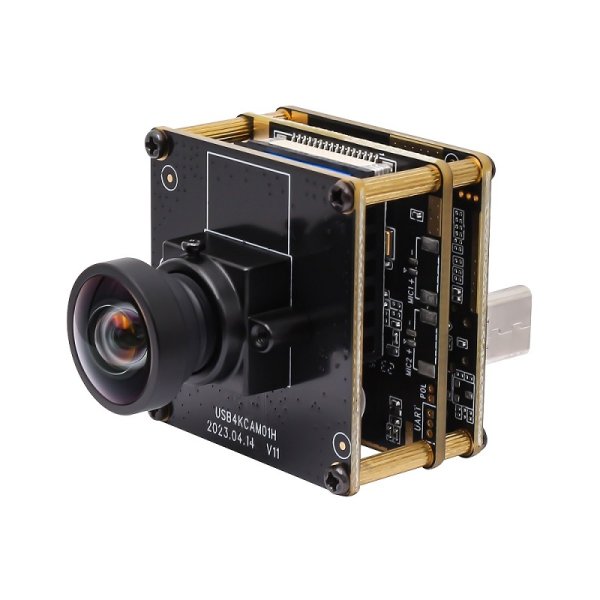

4K USB Type-C & HDMI Camera Module with 110 degree no distortion lens

4K USB Type-C & HDMI Camera Module with 110 degree no distortion lens

  • Model: ELP-USB4KCAM01H-H110
Add to Cart: Units:  999

Add you Tags
Details
Download

    Features:

    *Sensor: 1/2.8” Sony IMX415 Sensor

    *Resolution: 3840x2160

    *Compression: Mjpeg/YUY2/H.264/H.265

    *Frame Rate: 3840x2160 Mjpeg/H.264/H.265 30fps

    *Lens:110 degree no distortion/marco distortion lens (Many other lens optional)

    *Power Supply: USB Type-C Power Supply

    *Interface: Type-C & HDMI

    *Zoom: 2X Digital Zoom

    *Cable: 2pcs Cables (1pcs 1.2m cable with Type-C & USB2.0 port; 1pcs 1.5m cable with HDMI port)

    *Free Driver: UVC, driver free, Plug & Play

    *Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    Specifications:

    Model

    ELP-USB4KCAM01H-H110

    Sensor

    1/2.8” SONY IMX415

    Max Resolution

    3840(H)*2160(V)

    Sensitivity

    0.65V/lux-sec@550nm

    Pixel Size

    1.45µm x 1.45µm

    Video Compression

    MJPEG / YUY2(YUYV) / H.264 / H.265

    Digital Zoom

    2X Digital Zoom

    Resolution & Frame Rate

    3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps

    2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps

    1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps

    1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps

    1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps

    960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps

    640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps

    640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps

    Image Processing Time

    About 8 seconds after opening the preview software

    Central Definition

    1000LW/PH(Center)

    S/N Ratio

    30dB

    Min illumination

    0.2 Lux

    Shutter Type

    Electronic Rolling Shutter/ Frame Exposure

    Connecting Port Type

    USB 2.0 Interface &HDMI v1.4 Interface

    AEC/AWB/AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure

    Lens Parameter

    No distortion H110 lens, FOV about 110 degree.

    Optional M12 16mm/18mm/25mm, No distortion (FOV 80-125 degree),

    150 degree/180 degree Fisheye lens, M16 4mm lens etc.

    Power Supply & Interface

    USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

    Operating Voltage

    DC 5V

    Working Current

    480-500mA

    Dimension

    38x38x57.6mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    -10°C to 70°C

    USB Cable

    2 pieces cables

    (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port)

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.   Linux with UVC

    MAC-OSX10.4.8 or later

    Android5.x or above

      Optional Models  With no distortion lens:

    ELP-USB4KCAM01H-V100 (FOV about 85 degree)

    ELP-USB4KCAM01H-H100 (FOV about 100 degree)

    ELP-USB4KCAM01H-H110 (FOV about 110 degree)

    ELP-USB4KCAM01H-H120 (FOV about 120-125 degree)

    With normal lens:

    ELP-USB4KCAM01H-L12 (12mm)

    ELP-USB4KCAM01H-L16 (16mm)

    ELP-USB4KCAM01H-L25 (25mm)

    With M16 Black Light Lens:

    ELP-USB4KCAM01H-LH4 (4mm)

    With Fisheye Lens:

    ELP-USB4KCAM01H-L170 (FOV about 150 degree)

    ELP-USB4KCAM01H-L180 (FOV > 180 degree)
