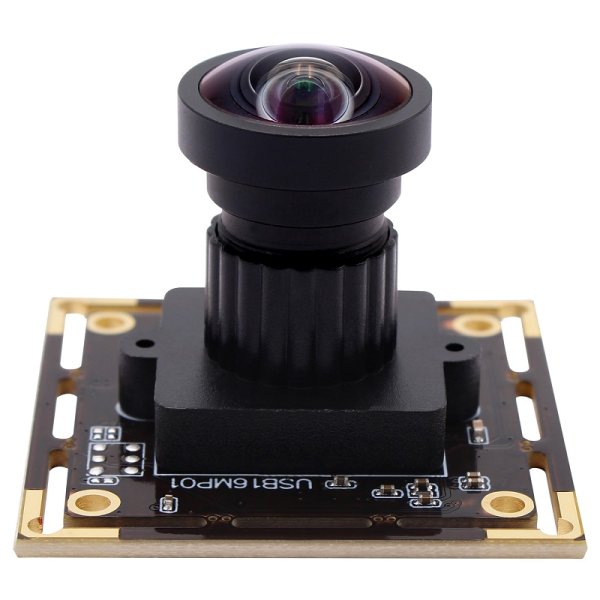

16 megapixel 120 degree no distortion HD usb micro camera module wide angle

16 megapixel 120 degree no distortion HD usb micro camera module wide angle

  • Model: ELP-USB16MP01-H120
Add to Cart:

Add you Tags
Details
Download

    Features:

    1. High Resolution 16MP USB Camera Module

    2. HD Micro USB Web Camera With 1/2.8 inch Sony IMX298 Sensor

    2. Max Resolution: 4656(H) X 3496(V)

    3. With undistorted 120 degree lens, FOV is about 118 degree (Many other lens optional)

    4. UVC free driver, Plug and Play

    5. Mjpeg/YUY2 compression

    6. Mini micro USB webcam with Size 38x38mm

    7. Support different operating systems, different preview softwares.
        -Support living streaming software, Skype, Zoom, Facetime, Youtube...
        -Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2, Camera Fi, Photo Booth....
        -Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...



    Specifications:

    Model
    ELP-USB16MP01-H120
    Optional Models
    With no distortion lens:
    ELP-USB16MP01-LC1100 (FOV 63 degree)
    ELP-USB16MP01-L75 (FOV 76 degree)
    ELP-USB16MP01-V100 (FOV 80 degree)   ELP-USB16MP01-H100 (FOV 95 degree)
    ELP-USB16MP01-H110 (FOV 107 degree)  ELP-USB16MP01-H120 (FOV 118 degree)

    With normal lens:
    ELP-USB16MP01-F28 (FOV 90 degree)  ELP-USB16MP01-F36 (FOV 76 degree)

    With fisheye lens:
    ELP-USB16MP01-L170 (FOV1 39 degree)
    ELP-USB16MP01-L180 (FOV >180 degree)
    Sensor
    SONY IMX298
    Sensor Size
    1/2.8inch
    Pixel Size
    1.12um
    Image Area
    6.4mm x 5.3mm
    Max. Resolution
    4656(H) X 3496(V) 16 Megapixel
    Compression Format
    MJPEG / YUY2 (YUYV)
    Resolution & Frame Rate
    4656 x 3496 MJPEG 10fps/ YUY2 1fps   4208 x 3120 MJPEG 10fps/ YUY2 1fps
    4160 x 3120 MJPEG@10fps YUY2@1fps   4000 x 3000MJPEG@10fps YUY2@1fps
    3840 x 2160 MJPEG@10fps YUY2@1fps   3264 x 2448MJPEG@10fps YUY2@1fps
    2592 x 1944 MJPEG@10fps YUY2@1fps   2320 x 1744MJPEG@30fps YUY2@1fps
    2048 x 1536 MJPEG@30fps YUY2@1fps   1920 x 1080MJPEG@30fps YUY2@5fps
    1600 x 1200 MJPEG@30fps YUY2@5fps   1280 x 960MJPEG@30fps YUY2@10fps
    1280 x 720 MJPEG@30fps YUY2@10fps   1024 x 768MJPEG@30fps YUY2@10fps
    800 x 600 MJPEG@30fps YUY2@15fps     640 x 480MJPEG@30fps YUY2@30fps
    Min Illumination
    0.5 Lux
    Shutter Type
    Electronic Rolling Shutter / Frame Exposure
    Connecting Port Type
    USB2.0 High Speed
    Free Drive Protocol
    USB Video Class (UVC)
    AEC
    Support
    AWB
    Support
    AGC
    Support
    Adjustable Parameters
    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
    Lens Parameter
     H120  No distortion Lens, FOV about 118 degree.
    Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc.
    Power Supply
    USB BUS POWER 4P-2.0mm Socket
    Operating Voltage
    DC5V
    Working Current
    150mA~240mA
    Working Temperature
    -10~70℃
    Storage Temperature
    -20~85℃
    Board Size /Weight
    38X38mm (Compatible 32X32mm) / about 30g
    Cable
    Standard 1m / Optional 2m,3m,5m
    Operating System Request
    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC (above Linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
