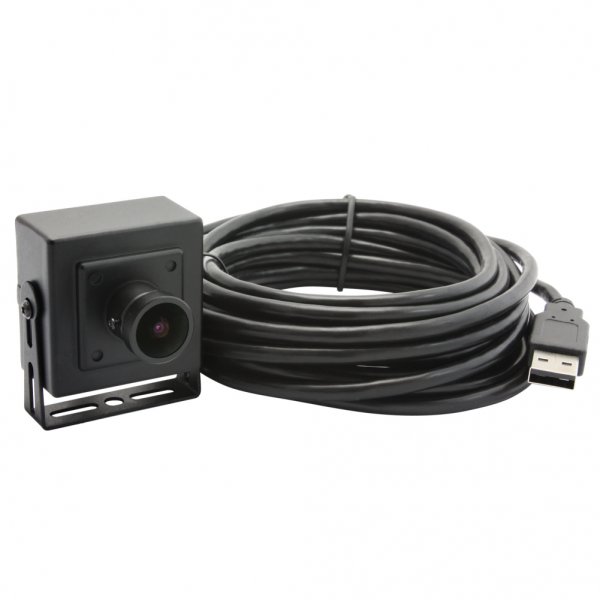

Model

ELP-USB4KHDR01-BL170

Sensor

SONY IMX317 (1/2.5” )

Max Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Image area

6100µmx4524µm

Picture format

MJPEG  / YUY2（YUYV）

Resolution & FPS

3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG
1280x960@30fps MJPEG/1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2
1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2
1280x960@5fps YUY2/1280x720@ 5fps YUY2
1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 /  320x240@ 30fps YUY2

Center Definition

1000LW/PH (Center)

S/N (Signal Noise Ratio)

26dB

Sensitivity

0.65V/lux-sec@550nm

Low illumination

0.2lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

Lens

HD L170 1.95mm Fisheye lens  (many other lens optional)

Power Supply & Connector

USB BUS POWER  4P-2.0mm socket

Power

DC5V

Current

200-250mA

Storage Temperature

-20°C to 70°C

Working Temperature

0°C to 60°C

USB Cable

3m (2m/5m Optional)

Operating System

Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
