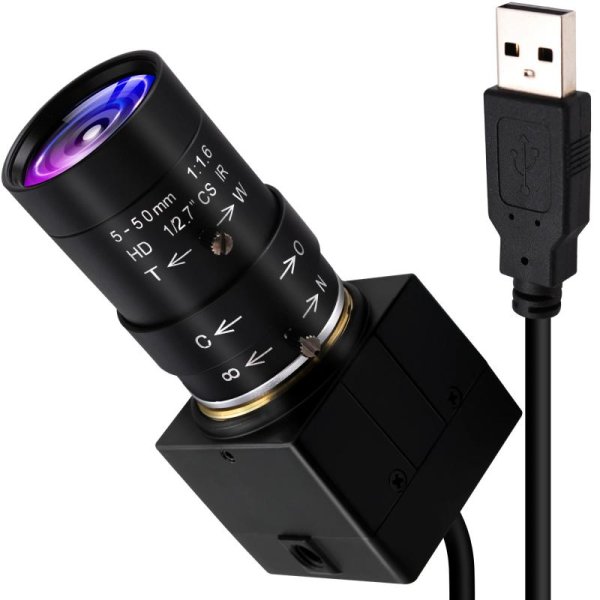

ELP 5-50mm Varifocal Lens 2MP 1080P CMOS AR0330 H.264 MJPEG 30fps UVC USB Camera with MIC

ELP 5-50mm Varifocal Lens 2MP 1080P CMOS AR0330 H.264 MJPEG 30fps UVC USB Camera with MIC

  • Model: ELP-USBFHD04H-SFV(5-50)
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:

    * 2MP 1080P H.264 USB Camera module

    * 1/3” Aptina AR0330 Color CMOS sensor for high quality image

    * High frame rate - H.264 /MJPEG 1920*1080 30fps

    * With CS manual 5-50mm varifocal zoom lens, 2.8-12mm lens available

    * With microphone for audio recording

    * H.264/MJPEG/YUY2 video format optional

    Sturdy metal housing with standard 1/4" tripod mount

    * High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface

    * Low power consumption - ideal for portable equipment.

    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

    * Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.



    Specification:



    Model

    ELP-USBFHD04H-SFV(5-50) ( 10X 5-50mm varifocal )

    Optional Models

    ELP-USBFHD04H-SFV(2.8-12) ( 4X 2.8-12mm varifocal )

    Sensor

    AR0330

    Lens Size

    1/3 inches

    Pixel Size

    2.2um X2.2um

    Max. Resolution

    1920(H)X1080(V)

    Compression Format

    H.264 /MJPEG / YUV2(YUYV)

    Resolution & Framerate

    H.264/MJPEG:

    320X180@ 30fps /320X240@ 30fps

    640X360@ 30fps /640X480@ 30fps

    1280X720@ 30fps/1920X1080@ 30fps

    YUY2/YUYV:

    320X180@ 30fps /320X240@ 30fps

    640X360@ 30fps /640X480@ 30fps

    1280X720@ 5fps/1920X1080@ 5fps

    S/N Ratio

    39dB

    Dynamic Range

    72.4dB

    Responsivity

    1.9 V/lux-sec

    Mini illumination

    0. 05lux

    Shutter Type

    ERS and GRR

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain,

    White balance, Backlight Contrast, Exposure

    Lens Parameter

    CS manual 5-50mm zoom lens, 2.8-12mm optional

    Digital Audio

    High quality digital MIC, support single, dual channel

    IR CUT Connector

    2P-1.25mm socket

    LED Board Power Connector

    Support 2P-2.0mm socket

    Power Supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Working Current

    130mA~190mA

    Working Temperature

    -10~70℃

    Storage Temperature

    -20~85℃

    Dimension

    40.5x86/39mm

    Cable

    Standard 3M / optional 1M,2M,5M ....

    Operating System Request

    WinXP/Vista/Win7/Win8/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
