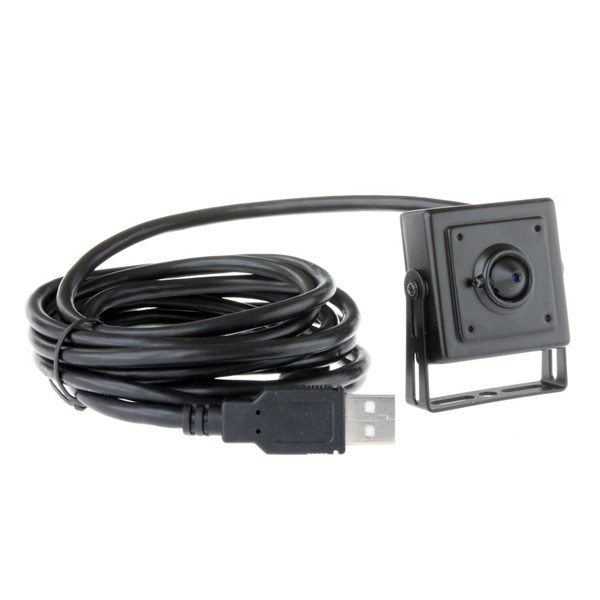

Pinhole Lens Box VGA USB Camera USB2.0 OmniVision OV7725 Color Sensor Support YUY and MJPEG

Pinhole Lens Box VGA USB Camera USB2.0 OmniVision OV7725 Color Sensor Support YUY and MJPEG

  • Model: ELP-USB30W02M-PL37
Add to Cart:

Add you Tags
Details
Download

    BOX VGA USB Camera

    Main Specifications

    Model

    ELP-USB30W02M-PL37

    Sensor

    OV7725

    Lens Size

    1/4 inch

    Pixel Size

    6.0um X 6.0um

    image area

    3984 µm x 2952 µm

    Max. Resolution

    640(H)X480(V)

    Compression format

    MJPEG  /  YUV2(YUYV)

    Resolution & frame

    640X480  MJPEG@ 60fps YUY2@ 30fps/ 480X480  MJPEG@ 30fps YUY2@ 30fps

    450X450  MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps

    320X240  MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps

    S/N Ratio

    50dB

    Dynamic Range

    60dB

    Sensitivity

    3.8V/lux-sec@550nm

    Mini illumination

    0. 2lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Backlight Contrast, Exposure

    Lens Parameter

    3.7mm pinhole lens

    Night vision

    Need to equipped IR Sensor Lens and IR LED Board

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC5V

    Operating Voltage

    100mA~160mA

    Working current

     -10~70℃

    Working temperature

    -20~85℃

    size /Weight



    Cable

    Standard  1M / optional 2M,3M,5M

    Operating system request

    WinXP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC
