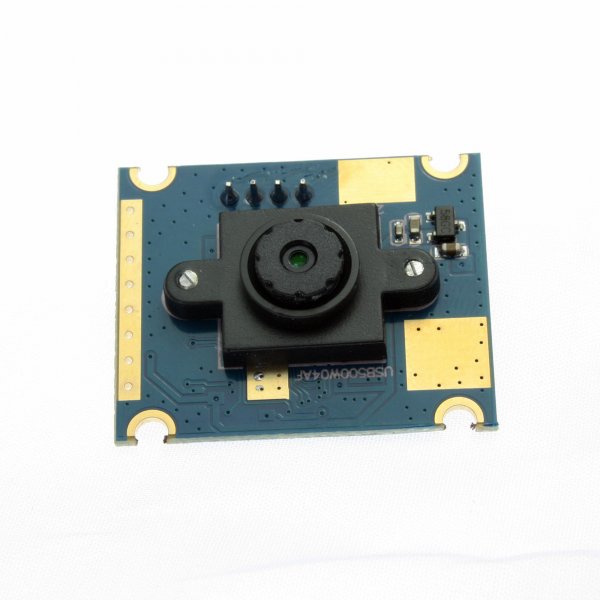

OV5640 FULL HD MINI Fixed 5MP USB Camera Module USB2.0 Color CMOS Sensor

OV5640 FULL HD MINI Fixed 5MP USB Camera Module USB2.0 Color CMOS Sensor

  • Model: ELP-USB500W04AF-L60
Add to Cart:

Add you Tags
Details
Download

    OV5640 FULL HD MINI Fixed 5MP USB Camera Module USB2.0 Color CMOS Sensor

    Main Specifications

    Module No.

    ELP-USB500W04AF-L60

    Sensor

    OV5640 (1/4” )

    Max. Resolution

    2592 (H) *1944 (V)

    Sensitivity

    600mV/Lux-sec

    Pixel Size

    1.4µm x1.4µm

    Image area

    3673.6µmx2738.4µm

    Maximum Image Transfer Rate

    2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG

    1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG

    1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG

    1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

    640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

    Camera Board Assembly technique

    SMT (ROSH)

    Focus

    Manual

    Resolution

    600LW/PH (Center)

    interface

    USB 2.0 High Speed

    protocol

    USB Video Class(UVC)

    S/N Ratio

    36dB

    Dynamic Range

    68dB

    Shutter

    Rolling shutter/ frame exposure

    Package

    CSP, Bare Die

    AGC/AEC/AWB/ABF

    Auto

    Output Formats

    YUYV/MJPEG

    Adjustable parameter

    Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus

    Package

    LQFN-40pin

    Lens Parameter

    Size:  1/4,  Iris:  F2.8,  Focus: 3.2mm,  DFOV: 60-65 Degree  HFOV: 52 Degree

    Relative Illumination (Sensor): 70%

    IR Filter: 650±10nm

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Operating Voltage

    DC5V

    Power consumption

    150mW (VGA); 200mW (QSXGA);

    Module Size

    32X25MM

    Temperature (Operation)

    -20°C to 70°C

    Temperature (Stable Image)

    0°C to 60°C

    USB Cable

    1M(2M/3M/5M Optional)

    Operating system request

    Win XP/Vista/Win7/Win8 / Win9/Win10/ Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

    Certifications

    FCC and CE
