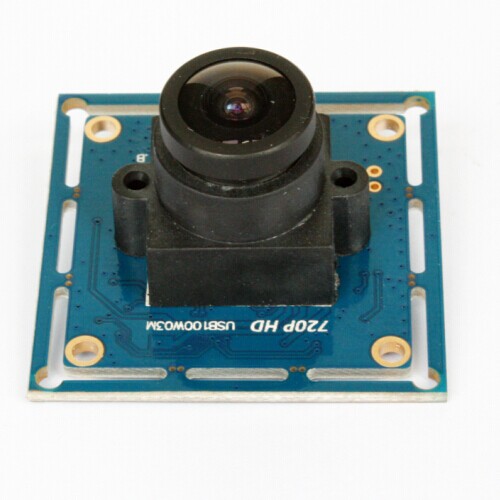

Industrial USB 720P Camera Module for Monochrome Stereo

Industrial USB 720P Camera Module for Monochrome Stereo

  • Model: ELP-USB100W03M-L36
Add to Cart:

Add you Tags
Details
Download

    General Description

    The HD 720P USB CMOS board camera module(model: ELP-USB100W03M serials) is ideal for many applications like security
    systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
    OmniVision, one of the world leaders in this field of electronics.

    The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

    Feature:

    *720P resolution 1280x720P
    *USB interface Camera Module for Monochrome Stereo
    *Android&Linux system support
    *YUY and MJPEG compression format optional
    *CMOS 720P sensor for high quality image and low power consumption
    *High speed USB 2.0 interface for high resolution PC camera interface
    *high pixel technology for sharp image and accurate color reproduction
    *low light performance – ideal for any lighting condition
    *Super small outline and thin profile for embedded applications
    *High frame rate– deliver 30 fps in 1280X720 resolution
    *High quality lens, true and undistorted color image
    *Low power consumption – ideal for portable equipment
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
    *Camera with UVC

    Specification:

    Optional models

    ELP-USB100W03M-L21(2.1mm lens)
    ELP-USB100W03M-L28(2.8mm lens)
    ELP-USB100W03M-L36(3.6mm lens)
    ELP-USB100W03M-L60(6mm lens)
    ELP-USB100W03M-L80(8mm lens)
    ELP-USB100W03M-L12(12mm lens)

    Sensor

    OV9712

    Lens size

    100W, 1.0megapixel, 1280X720

    Max. Resolution

    640X480 VGA

    Picture format

    YUY2
    MJPEG

    USB Protocal

    USB2.0 HS/FS, USB1.1 FS

    Support free driver

    USB Video Class(UVC)1.1

    Auto exposure AEC

    Support

    Auto white blance AEB

    Support

    Frame rate

    1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 10fps
    960 (H)   x 720 (V) pixels    MJPEG 30fps      YUY2 15fps
    800 (H)   x 600 (V) pixels    MJPEG 30fps      YUY2 20fps
    640 (H)   x 480 (V) pixels    MJPEG 30fps      YUY2 30fps
    352(H)    x 288 (V) pixels    MJPEG 30fps      YUY2 30fps
    320 (H)   x 240 (V) pixels    MJPEG 30fps      YUY2 30fps
    176(H)    x 144 (V) pixels    MJPEG 30fps      YUY2 30fps
    160 (H)   x 120 (V) pixels    MJPEG 30fps      YUY2 30fps

    Adjustable parameters

    Brightness/Contrast/Color saturation /Definition/Gamma/WB

    Night vision

    optional, can choose IR board

    view angle

    30-150 degree optional

    voltage

    DC 5V

    current

    150mA

    work temperature

    DEGREES(-20~70)

    Size

    32x32mm

    Support OS

    WinXP/Vista/WIN7/WIN8
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above



    Effective Pixels:

    1280 (H) x 720 (V) pixels
    960 (H) x 720 (V) pixels
    800 (H) x 600 (V) pixels
    640 (H) x 480 (V) pixels
    352(H) x 288 (V) pixels
    320 (H) x 240 (V) pixels
    176(H) x 144 (V) pixels
    160 (H) x 120 (V) pixels

    (Other special size resolution is customized)

    Performance:

    1280 (H) x 720 (V) pixels   MJPEG 30fps      YUY2 10fps
    960 (H) x 720 (V) pixels    MJPEG 30fps       YUY2 15fps
    800 (H) x 600 (V) pixels    MJPEG 30fps       YUY2 20fps
    640 (H) x 480 (V) pixels    MJPEG 30fps       YUY2 30fps
    352(H) x 288 (V) pixels    MJPEG 30fps        YUY2 30fps
    320 (H) x 240 (V) pixels    MJPEG 30fps       YUY2 30fps
    176(H) x 144 (V) pixels    MJPEG 30fps        YUY2 30fps
    160 (H) x 120 (V) pixels    MJPEG 30fps       YUY2 30fps

    Applications

    Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

    used for all kinds of machine as below:

    machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
    vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
    enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
    automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
    shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
    surveillance, endoscope, Medical auxiliary equipment, etc.
