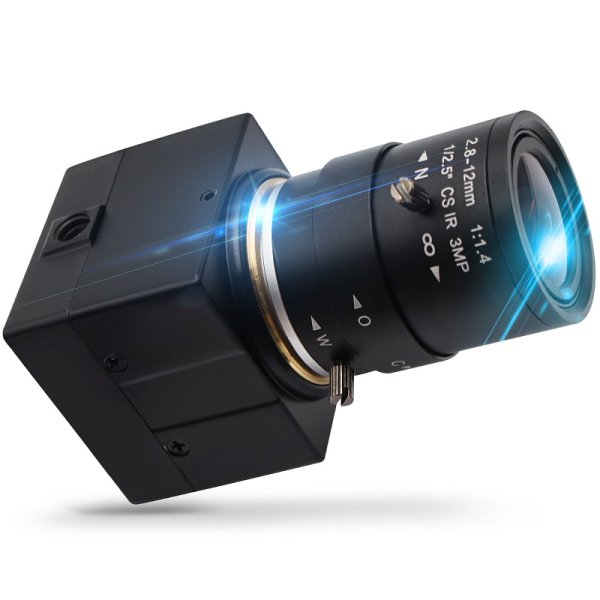

Model NO.

ELP-USB4K03-SFV(2.8-12)

Optional Models

ELP-USB4K03-SFV(5-50)
ELP-USB4K03-MFV(2.8-12)
ELP-USB4K03-MFV(5-50)

Image Sensor

SONY IMX415 (1/2.8” )

Max. Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Pixel Size

1.45µmx1.45µm

Compression format

MJPEG / YUY2（YUYV）

Resolution & frame

3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2

Center definition

1000LW/PH (Center)

S/N Ratio

30dB

Sensitivity

0.65V/lux-sec@550nm

Minimum illumination

0.2lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Auto Focus

Support

Adjustable parameters

Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
Balance, Exposure

Lens Parameter

CS 2.8-12mm (5-50mm optional)

Power supply& connector

USB BUS POWER 4P-2.0mm socket

Power Voltage

DC5V

Power Current

200mA

Dimension

See the image as below

Storage Temperature

-20°C to 80°C

Work Temperature

-10°C to 70°C

USB Cable

Standard 3m / Optional 1m,2m,5m...

Operating System support

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
