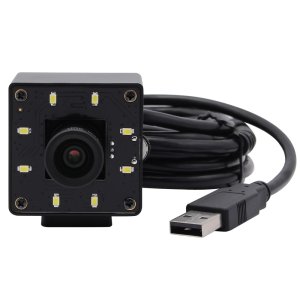

ELP 2020 New start light Sony IMX323 H.264 USB webcam with 6 white LED, brightness adjustable

ELP 2020 New start light Sony IMX323 H.264 USB webcam with 6 white LED, brightness adjustable

  • Model: ELP-USBFHD06H-KLH4W
Add to Cart:

Add you Tags
Details
Download

    Features:
    * 2MP 1080P H.264 USB Camera module with 4mm dark light M16 lens and white LED
    * 1/2.9” Sony IMX323 sensor for high quality image
    * 0.01 Lux Low illumination - ideal for any lighting condition
    * With HD 4MM M16 lens
    * With microphone for audio recording

    * With Alluminum mini black box housing
    * H.264/MJPEG/YUY2 dual video format optional
    * Mini size 38x38/32x32mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
    * Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.




    Specification:



    Model

    ELP-USBFHD06H-KLH4W(4mm M16 lens)

    ELP-USBFHD06H-KLH6W(6mm M16 lens)

    ELP-USBFHD06H-KLH8W(8mm M16 lens)

    Sensor

    Sony IMX323

    Lens Size

    1/2.9 inches

    Pixel Size

    12.8X11.6 mm

    image area

    2000(H)X1121(V) approx. 2.24 M pixels

    Max. Resolution

    1080P

    Compression format

    H.264 /MJPEG / YUV2(YUYV)

    Resolution & frame

    H264:
    320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
    800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
    MJPEG:
    320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/ 640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@30fps
    YUV:
    320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
    800X600@ 15 fps

    S/N Ratio

    42dB

    Dynamic Range

    86dB

    Sensitivity

    5.0V/lux-sec@550nm

    Mini illumination

    0. 01lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance,
    Backlight Contrast, Exposure

    Lens Parameter

    4mm darl light M16 lens (6/8mm M16 lens optional)

    Digital audio

    High quality digital MIC, support single, dual channel

    LED board power connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Working current

    140mA~190mA

    Working temperature

     -10~70℃

    Storage temperature

     -20~85℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard 3M / 2M,5M optional

    Operating system request

    Win7 Win8 Win10 Win11
    Linux 2.6 or above
    Android 4.0 or above

    Mac Os
