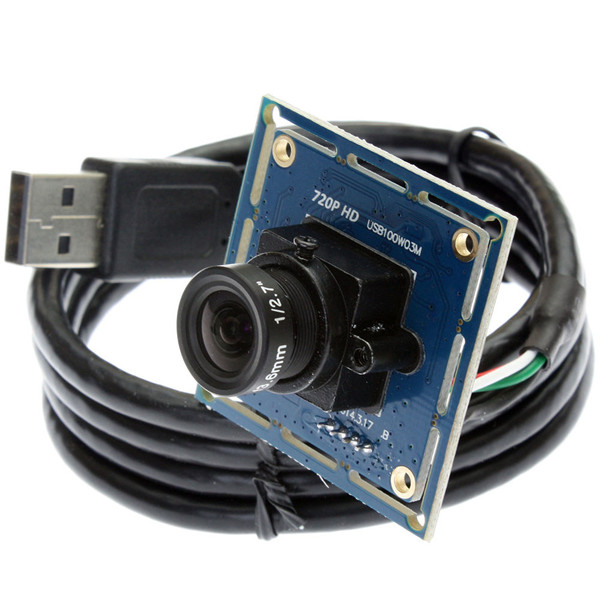

ELP 720P USB Camera Module USB2.0 OV9712 Color Sensor Support YUY2 and MJPEG with 3.6mm Lens

ELP 720P USB Camera Module USB2.0 OV9712 Color Sensor Support YUY2 and MJPEG with 3.6mm Lens

  • Model: ELP-USB100W03M-L36
Add to Cart: Units:  100

Add you Tags
Details
Download
    Features:

    *HD USB Camera, max resolution 1280x720P, 1.0 mega pixels

    *YUY2 and MJPEG compression format optional

    *CMOS sensor OmniVision OV9712 for high quality image and low power consumption

    *With M12 monut 3.6mm lens

    *High speed USB 2.0 interface for high resolution PC camera interface

    *Super small outline and thin profile for embedded applications(Mini size 32*32/38*38mm)

    *Free Driver for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

    *Camera with UVC



    Main Specifications

    Model

    ELP-USB100W03M-L36 (3.6mm lens, HFOV 56 degree)



    Other lens for options:

    ELP-USB100W03M-L28 (2.8mm lens, HFOV 75 degree)

    ELP-USB100W03M-L21 (2.1mm lens, HFOV 72 degree)

    ELP-USB100W03M-L60 (6mm lens, HFOV 37 degree)

    ELP-USB100W03M-L80 (8mm lens, HFOV 29 degree)

    ELP-USB100W03M-L12 (12mm lens, HFOV 17 degree)

    Sensor

    OmniVision OV9712

    Lens Size

    1/4 inch

    Pixel Size

    3.0um X 3.0um

    image area

    3888 µm x 2430 µm

    Max. Resolution

    1280(H)X720(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps

    800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

    352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps

    176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

    S/N Ratio

    40dB

    Dynamic Range

    69dB

    Sensitivity

    3.7V/lux-sec@550nm

    Mini illumination

    0.1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    USB protocol

    USB2.0 HS/FS

    OTG protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard M12 mount 3.6mm, HFOV about 56 degree/ VFOV 31 degree/ DFOV 64 degree;



    optional 2.1/2.8/6/8/12mm lens/ No Distortion Lens/ FOV(D)170 Degree Lens

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC5V

    Operating Voltage

    100mA~120mA

    Working current

    -10~70℃

    Working temperature

    -20~85℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard  1M / optional 2M,3M,5M

    Operating system request

    Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
