Model

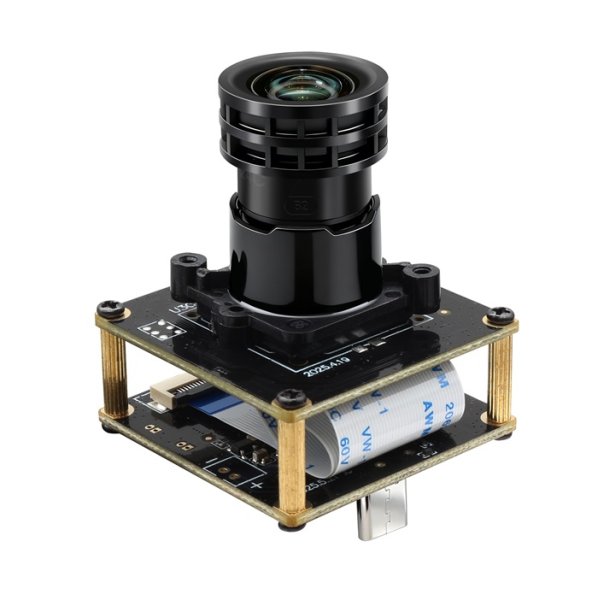

ELP-U3CAM4K60-F1L4 (M16 4mm lens, HFOV 93 degree)

   Options Lens

   M16 Lens, F1.0 (Aperture 1.0):

   ELP-U3CAM4K60-F1L28 (2.8mm Lens, HFOV 110°)

   ELP-U3CAM4K60-F1L4 (4mm Lens, HFOV 93°)

   ELP-U3CAM4K60-F1L6 (6mm Lens, HFOV 58°)

   M12 Nomal Lens:

   ELP-U3CAM4K60-L32 (3.2mm Lens, HFOV 130°)

   ELP-U3CAM4K60-L39 (3.9mm Lens, HFOV 120°)

   ELP-U3CAM4K60-L5 (5mm Lens, HFOV 94°)

   ELP-U3CAM4K60-L10 (10mm Lens, HFOV 38°)

   ELP-U3CAM4K60-L16 (16mm Lens, HFOV 25°)

   M12 No Distortion Lens:

   ELP-U3CAM4K60-V100 (No Distortion Lens, HFOV 100°)

   ELP-U3CAM4K60-V6 (No Distortion Lens, HFOV 65°)

   ELP-U3CAM4K60-H90 (No Distortion Lens, HFOV 90°)

   ELP-U3CAM4K60-H85 (No Distortion Lens, HFOV 85°)

Sensor

1/ 1.8” SONY IMX678

Max/ Default Resolution

3840(H)*2160(V)

Pixel Size

2.0 µm x 2.0 µm

Video Compression

MJPEG / YUY2(YUYV)

Resolution & Frame Rate

(USB 3.0 Interface & Speed)

Under USB 3.0 Interface & Speed:

3840x2160 MJPEG 60fps/ YUY2 23fps

2880x2160 MJPEG 60fps/ YUY2 30fps

2592x1944 MJPEG 60fps/ YUY2 30fps

2560x1440 MJPEG 60fps/ YUY2 30fps

2048x1536 MJPEG 60fps/ YUY2 60fps

1600x1200 MJPEG 60fps/ YUY2 60fps

1920x1080 MJPEG 60fps/ YUY2 60fps

1280x960 MJPEG 60fps/ YUY2 60fps

1280x720 MJPEG 60fps/ YUY2 60fps

640x480 MJPEG 60fps/ YUY2 60fps

Resolution & Frame Rate

(USB 2.0 Speed)

Under USB 2.0 Speed:

3840x2160 MJPEG 30fps/ YUY2 1fps

2880x2160 MJPEG 30fps/ YUY2 1fps

2592x1944 MJPEG 30fps/ YUY2 1fps

2560x1440 MJPEG 30fps/ YUY2 1fps

2048x1536 MJPEG 30fps/ YUY2 1fps

1600x1200 MJPEG 60fps/ YUY2 1fps

1920x1080 MJPEG 60fps/ YUY2 1fps

1280x960 MJPEG 60fps/ YUY2 1fps

1280x720 MJPEG 60fps/ YUY2 10fps

640x480 MJPEG 60fps/ YUY2 30fps

Central Definition

1000LW/PH(Center)

S/N Ratio

41dB

Min illumination

0. 1Lux

Shutter Type

Electronic Rolling Shutter/ Frame Exposure

Connecting Port Type

USB 3.0 Interface

AEC/AWB/AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

White Balance, Backlight Compensation, Exposure

Lens Parameter

 M16 Lens, f=4mm, F1.0 (Aperture 1.0),

 HFOV is approximately 93°.

 Optional Lenses:

 M12 No distortion: 65°/ 85°/ 90°/ 100°

 M12 Normal: 25°/ 38°/ 94°/ 120°/ 130°

 M16: 58°/ 93°/ 110°

 (For other viewing angles, please contact us directly.)

Power Supply & Interface

USB Type-C Power Supply, Type-C

Operating Voltage

DC 5V

Working Current

230-260mA

Dimension

38x38x48.9mm

Storage Temperature

-20°C to 80°C

Working Temperature

-10°C to 70°C

USB Cable

1.2m cable with USB3.0 Type-C port

Operating System Request

Win10/Win11 etc;

Linux with UVC;

MAC-OSX10.4.8 or later;

Android5.x or above.
