ELP 1200P Global Shutter IMU Stereo USB3.0 Camera Module 60FPS AR0234 No Distortion Lens 85 Degree
- Model: ELP-U3GS0234C2L63-V100
|
Recently Viewed
 ELP 1200P Global Shutter IMU Stereo USB3.0 Camera Module 60FPS...
TAGS
|
ELP 1200P Global Shutter IMU Stereo USB3.0 Camera Module 60FPS AR0234 No Distortion Lens 85 Degree
Details
Download
IMU Camera

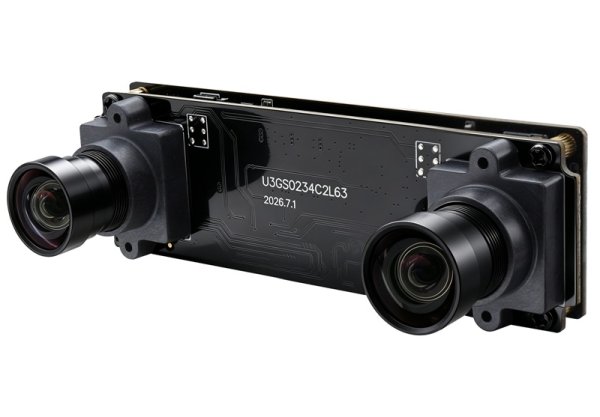

This is a USB3.0 camera integrated with a high-performance 6-axis IMU chip. The device can output high-definition images and IMU data synchronously, with a minimum synchronization accuracy of Microsecond-level. Equipped with dedicated test software, it supports rapid verification of image and IMU synchronized data, ideal for various visual perception R&D scenarios and applications. Custom multi-camera synchronization for 2-channel /4-channel /8-channel and more is available.
Main Application Scenarios Widely used in:
Intelligent robot data collection, robot pose perception & visual navigation, positioning, motion capture, 3D reconstruction, AR/VR interaction, industrial dynamic inspection, autonomous driving perception testing, high-definition image data acquisition for smart terminals and other scenarios.
Features:
1200P Global Shutter 60FPS IMU Stereo USB3.0 Camera Module with AR0234 Color CMOS Sensor
*Synchronous dual lens camera: 1200P dual lens USB3.0 Camera (Two images Synchronized) *Sensor: AR0234 (1/2.6”), color image and video *IMU Model: ICM-42688-P, TDK InvenSense *Images and IMU Data Synchronization: Microsecond-level timestamp synchronization accuracy *Resolution: MJPEG：4000X1200@ 60fps/30fps *HD Lens: with M12 mount dual lens, no distortion 85 degree horizontal view angle (Many other lens optional) *Small size: 84.3x25mm, Type C connector usb camera module *UVC Free Driver: Plug and Play, simple to use, suitable for all kinds of users *System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware. *Shutter Type: The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete images even for high-speed moving objects. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
Specifications:
