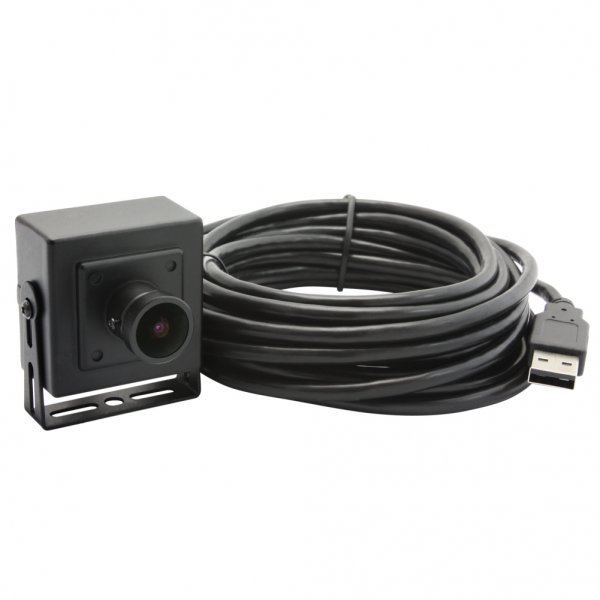

Fisheye wide angle 2MP Webcam UVC Plug Play 1080P full HD high speed USB security camera

Model: ELP-USBFHD08S-BL170

Add you Tags

Product 11/13

Return to the Product List

Details

Download

Features:

* Full HD 1080P free driver USB2.0 high speed 60, 120, 260fps wide angle fisheye usb camera

* USB Camera with 1/3" OV4689 CMOS Sensor

* High speed Mjpeg 260fps @ 640x480, 120fps @1280x720, 60fps @1920x1080 USB webcam

* Mini micro USB digital Camera, with standard 3m cable (1m, 2m, 5m optional).

* USB with camera for WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

* Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.

Specification:

Model	ELP-USBFHD08S-BL170
Optional Model	ELP-USBFHD08S-BL21 (2.1mm) ELP-USBFHD08S-BL28 (2.8mm) ELP-USBFHD08S-BL29 (2.9mm) ELP-USBFHD08S-BL60(6mm) ELP-USBFHD08S-BL80 (8mm) ELP-USBFHD08S-BL12(12mm) ELP-USBFHD08S-BL36 (3.6mm) ELP-USBFHD08S-BL180 (fisheye lens, HFOV >180 degree) ELP-USBFHD08S-BL100 (No distortion Lens) All above models, specifications are same, just lens different
Resolution & FPS	1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps
Sensor	OV4689 Sensor	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	2.0μm x 2.0μm	Shutter Type	Electronic rolling shutter/ Frame exposure
Mini illumination	0.1Lux	AEC	Support
Max. Resolution	FULL HD 1920(H)x1080(V)pixels	AEB	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	Fisheye 1.95mm lens (2.1mm/ 2.8mm/2.9mm, 3.6mm/6mm/ 8mm/ 12mm/ No distortion /Fisheye 180Degree optional)	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 3m/ Optional 1m,2m,5m	work temperature	DEGREES(-20~70)
Case	With aluminum 41x41mm box case	Certifications	FCC and CE
Power supply	USB BUS POWER	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	150mA~220mA
OTG protocol	USB2.0 OTG	Special function	High FPS
Night vision	Without (Do not advice Connect IR LED Board)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 / WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
