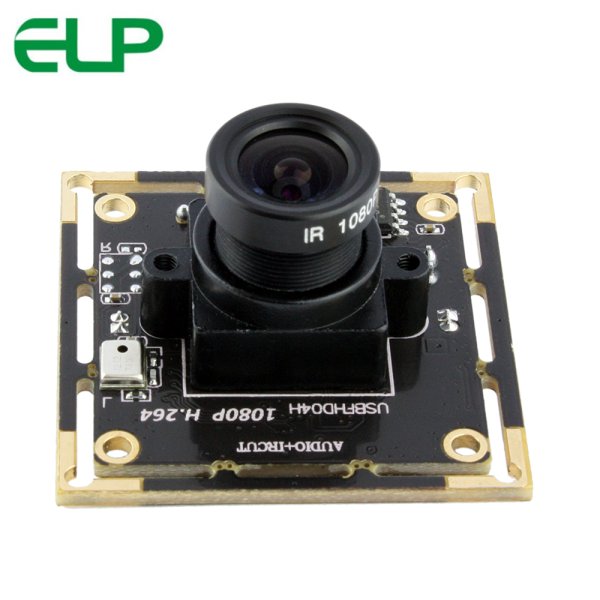

ELP Free Driver 1080P Full HD H.264 USB Webcam Camera Module for Car, Bus, Plane Video Surveillance

ELP Free Driver 1080P Full HD H.264 USB Webcam Camera Module for Car, Bus, Plane Video Surveillance

  • Model: ELP-USBFHD04H-L36
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 2MP 1080P H.264 USB Camera module

    * 1/3” Aptina AR0330 Color CMOS sensor for high quality image

    * High frame rate - H.264 /MJPEG 1920*1080 30fps

    * With HD 3.6mm M12 lens

    * With microphone for audio recording

    * Support IR CUT & IR LED for no color distortion image day & night

    * H.264/MJPEG/YUY2 dual video format optional

    * Mini size 38x38/32x32mm for embedded application

    * High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface

    * Low power consumption - ideal for portable equipment.

    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

    * Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.



    Specification:

    Model NO.

    ELP-USBFHD04H-L36 (3.6MM Lens)



    Optional Model with different lens option:

    ELP-USBFHD04H-L21 (2.1MM Lens)

    ELP-USBFHD04H-L37 (3.7MM Pinhole Lens)

    ELP-USBFHD04H-L60 (6MM Lens)

    ELP-USBFHD04H-L80 (8MM Lens)

    ELP-USBFHD04H-L12 (12MM Lens)

    ELP-USBFHD04H-L100 (100 degree No distortion Lens)

    ELP-USBFHD04H-H110 (110 degree Low Distortion Lens)

    ELP-USBFHD04H-H120 (120 degree Low Distortion Lens)

    ELP-USBFHD04H-L170(170 degree Fisheye Lens Lens)

    ELP-USBFHD04H-L180(180 degree Fisheye Lens Lens)

    Sensor

    AR0330

    Lens Size

    1/3 inches

    Pixel Size

    2.2um X2.2um

    Max. Resolution

    1920(H)X1080(V)

    Compression format

    H.264 /MJPEG / YUV2(YUYV)

    Resolution & frame

    H.264/MJPEG:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 30fps/1920X1080@ 30fps
    YUV:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 5fps/1920X1080@ 5fps

    S/N Ratio

    39dB

    Dynamic Range

    72.4dB

    Responsivity

    1.9 V/lux-sec

    Mini illumination

    0. 05lux

    Shutter Type

    ERS and GRR

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard 3.6mm

    Digital audio

    High quality digital MIC, support single, dual channel

    IR CUT Connector

    2P-1.25mm socket

    LED board power connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Working current

    130mA~190mA

    Working temperature

     -10~70℃
