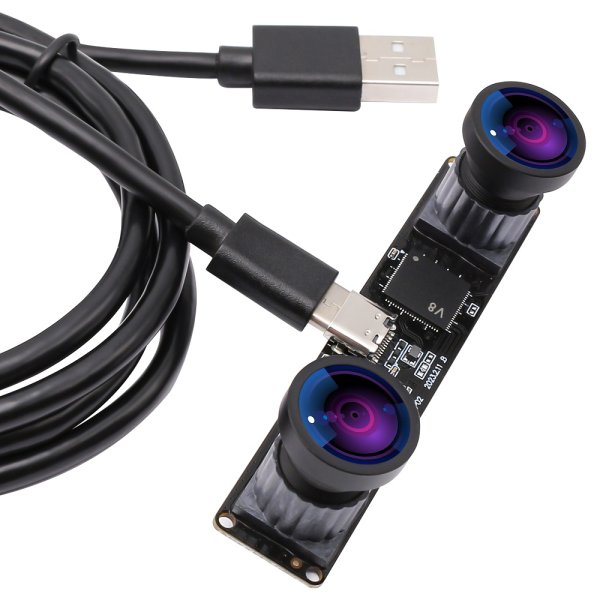

ELP 4MP 3840X1080P 60FPS 120 Degree No Distortion Wide Angle Dual Lens USB Camera

ELP 4MP 3840X1080P 60FPS 120 Degree No Distortion Wide Angle Dual Lens USB Camera

  • Model: ELP-USB3D1080P02-H120
Add to Cart:

Add you Tags
Details
Download

    Features:

    1. Sensor: Dual lens camera module with 1/2.7 inch JX-F35 Sensor
    2. Sychronous dual lens camera: 2 megapixel 1080P dual lens usb camera, (Two images Synchronized)
    3. System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC
    Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
    4. HD Lens: With dual lens, 120 degree No distortion lens. (Many other lens optional)
    5. Small size: 80x16.5mm micro usb camera module for android
    6. Multi-applications:1080P Full HD dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...
    7. Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition,Exposure...
    8. UVC free driver: Plug and Play, simple to use, suitable for all kinds of users
    9. High FPS: High Speed 3D Stereo camera 3840x1080 Mjpeg 60FPS
    10. Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...



    Specifications:



    Model



    ELP-USB3D1080P02-H120 (H120 No distortion lens, HFOV 125 degree)



    Optional Models



      ELP-USB3D1080P02-L36 (M12 3.6mm lens, HFOV 85-90 Degree)


      ELP-USB3D1080P02-LC1100 (No distortion lens, HFOV 65 degree)
      ELP-USB3D1080P02-H100 (H100 No distortion lens, HFOV 95 degree)
      ELP-USB3D1080P02-H110 (H110 No distortion lens, HFOV 115 degree)

      ELP-USB3D1080P02-V83 (No distortion lens, HFOV 80-85 degree)

      ELP-USB3D1080P02-V90 ( M9 V90 lens, HFOV 117 degree)



      ELP-USB3D1080P02-L170 (L170 fisheye lens, HFOV 152 degree)

      ELP-USB3D1080P02-L180 (L180 fisheye lens, HFOV 187 degree)



    Sensor

    JX-F35

    SensorSize

    1/2.7inch

    Pixel Size

    3.0µm x 3.0µm

    Max. Resolution

    3840(H)X1080(V)

    Compression Format

    MJPEG/ YUY2 (YUYV)

    Resolution & Frame Rate

    MJPEG：3840X1080@60fps/2560X720@60fps /1600X600@60fps

    1280X480@60fps /640X240@60fps

    Sensitivity

    4.5V/lux-sec@550nm

    Minillumination

    0. 3lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port Type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AWB

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White Balance,

    Backlight Contrast, Exposure

    Lens Parameter

      M12 Lens No distortion lens,

      HFOV 125 degree/ VFOV 85 degree

    Power Supply

    USB BUS POWER Type-C

    Operating Voltage

    DC5V

    Working Current

    210mA~240mA

    Working Temperature

    -10～70℃

    Storage Temperature

    -20～85℃

    Board Size /Weight

    80X16.5mm/ About 45g

    Cable

    Standard 1.2M

    Operating System Request

    Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.2)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
