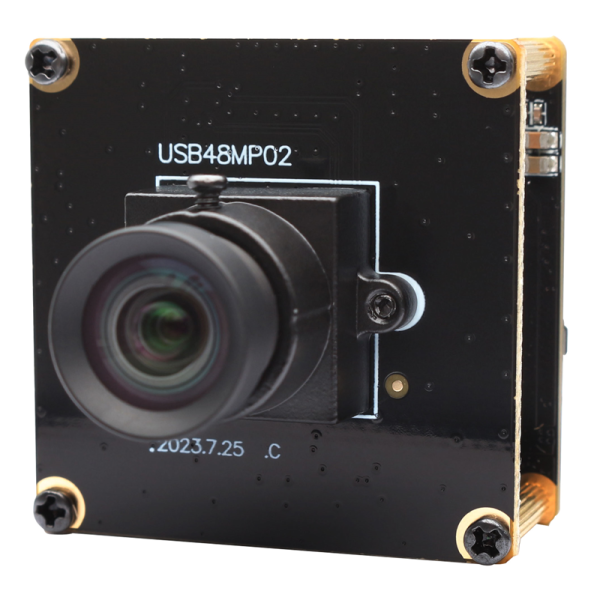

ELP 48MP High Resolution USB Camera Module with No Distortion Lens

Model: ELP-USB48MP02-LC1100

Add you Tags

Product 7/11

Return to the Product List

Details

Download

General Description:

This 48MP High resolution USB Camera is baded on Big 1/2" 48MP IMX586 sensor with fixed lens, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Ultra 8000x6000 resolution meets application where high resolution images and video are required.

-High Quality Imaging: 8000x6000 resolution, adpots big 1/2" 48MP IMX586 sensor for sharp image.

-Lens: No distortion lens

-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.

-Driver free, Plug & Play: UVC-compliant, free driver,easy operate.

-Applications: Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......

-Compatible with multi software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....

Specifications:

Model	ELP-USB48MP02-LC1100
Sensor	IMX586
Max. Resolution	8000 (H) *6000 (V)
Sensor Size	1/2 inch (4:3)
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	8000x6000 @ 5fps MJPEG / 4000x3000 @ 12fps MJPEG 3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG 1280x720 @ 30fps MJPEG 19201080 @5fps YUY2 / 800600 @25fps YUY2 640*480 @20fps YUY2
Surface Mount Technology	SMT
Central Definition	1000LW/ PH (Center)
S/ N Ratio	37dB
Dynamic Range	82dB
Sensitivity	1.4V/lux-sec@550nm
Min illumination	0.3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
Lens Parameter	No distortion lens, HFOV: 76 Degree (Many other lens optional)
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	550mA- 650mA
Board Size	Double-deck, 38mm × 38mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 70°C
USB Cable	Standard 1m, optional 0.3m/0.5m/ 1.5m/2m
Operating System Request	Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
Optional Models	With M12 Lens ELP-USB48MP02-L12 (12mm, HFOV about 28 degree) ELP-USB48MP02-L16 (16mm, HFOV about 23 degree) ELP-USB48MP02-L25 (25mm, HFOV about 13 degree) ELP-USB48MP02-L29 ( 2.9mm, HFOV about 138 degree) With No distortion lens: ELP-USB48MP02-LC1100 (HFOV about 76 degree) ELP-USB48MP02-V100 (HFOV about 90 degree) ELP-USB48MP02-H100 (HFOV about 105 degree) With fisheye lens: ELP-USB48MP02-L170 (HFOV about 178 degree) ELP-USB48MP02-L185 (HFOV about 200 degree)
