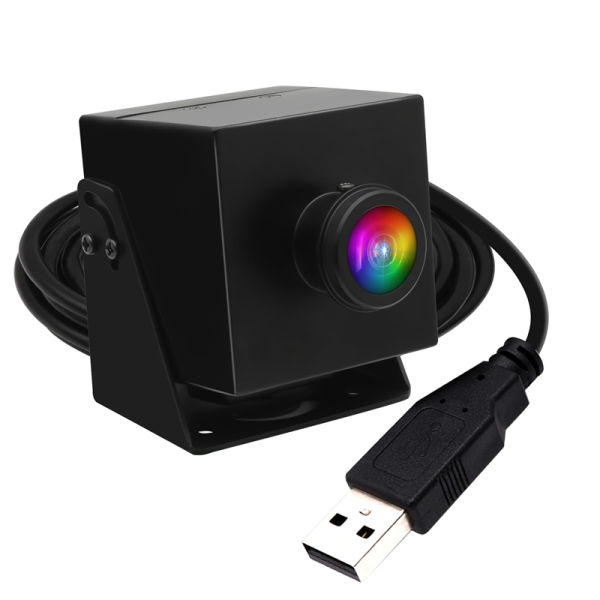

ELP 48MP High Resolution USB Camera 180 Degree Fisheye Lens with Small Box Case

ELP 48MP High Resolution USB Camera 180 Degree Fisheye Lens with Small Box Case

  • Model: ELP-USB48MP02-SL185
 Sold Out

Add you Tags
Details
Download
    General Description:

    This 48MP High resolution USB Camera is baded on Big 1/2" 48MP IMX586 sensor with fixed lens, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Ultra 8000x6000 resolution meets application where high resolution images and video are required.


    -High Quality Imaging: 8000x6000 resolution, adpots big 1/2" 48MP IMX586 sensor for sharp image.

    -Lens: Fisheye lens

    -High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.

    -Driver free, Plug & Play: UVC-compliant, free driver,easy operate.

    -Applications: Small size 42x42mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......

    -Compatible with multi software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
    Comptible with  Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....


    Specifications:

    Model

    ELP-USB48MP02-SL185 (Fisheye lens)

    Sensor

    IMX586

    Max. Resolution

    8000 (H) *6000 (V)

    Sensor Size

    1/2 inch (4:3)

    Compression Format

    MJPEG / YUV2 (YUYV)

    Resolution & Frame Rate

    8000x6000 @ 5fps MJPEG / 4000x3000 @ 12fps MJPEG

    3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG

    1280x720 @ 30fps MJPEG



    1920*1080 @5fps YUY2 / 800*600 @25fps YUY2

    640*480 @20fps YUY2

    Surface Mount Technology

    SMT

    Central Definition

    1000LW/ PH (Center)

    S/ N Ratio

    37dB

    Dynamic Range

    82dB

    Sensitivity

    1.4V/lux-sec@550nm

    Min illumination

    0.3 lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port Type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    Lens Parameter

    Fisheye lens, 1.56mm, HFOV >180 degree;



    (140 degree fisheye lens for optional)

    Power Supply

    USB BUS POWER    4P-2.0mm Socket

    Operating Voltage

    DC 5V

    Working Current

    550mA- 650mA

    Board Size

    Double-deck, 38mm × 38mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    0°C to 70°C

    USB Cable

    Standard 2m, optional 0.3m/0.5m/ 1m/1.5m

    Operating System Request

    Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
